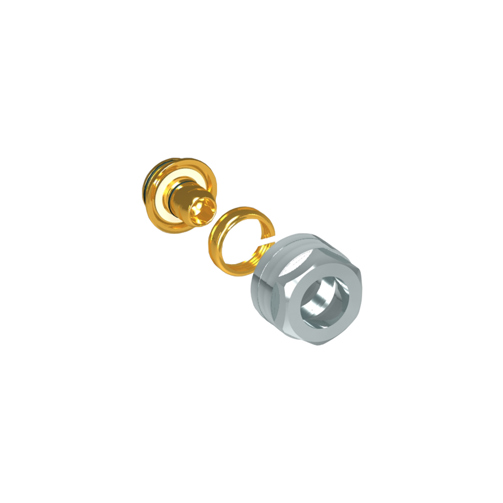

Compression fitting UFH
Guarantees a solid connection in UFH systems.
- Solid connection
- Available in multiple sizes
- Durable
- Easy installation
- High-quality materials
Product description
Myson's Floortec Compression Fitting for underfloor heating guarantees a solid connection between your underfloor heating pipe and the manifold. This Diffu-Pex screw connection ensures that your underfloor heating operates seamlessly, contributing to an efficient and reliable heating system.
Technical Specifications
| ETIM Class | EC003024 - Fitting with 2 connections |
|---|---|
| Material connection 1 | Brass |
| Material quality connection 1 | CuZn39Pb3 (CW617N) |
| Surface protection connection 1 | Nickel-plated |
| Surface treatment connection 1 | Pickled |
| Material connection 2 | Brass |
| Material quality connection 2 | CuZn39Pb3 (CW617N) |
| Surface protection connection 2 | Nickel-plated |
| Surface treatment connection 2 | Pickled |
| Shape | Straight |
| Model | 2-part - 3-part |
| Reducing | No |
| Eccentric | No |
| System-specific | Yes |
| Nominal diameter connection 1 | Other |
| Outer pipe diameter connection 1 [mm] | 17 - 20 |
| Wall thickness, connection 1 [mm] | 2 - 3 |
| Wall thickness connecting pipe, connection 1 [mm] | 2 |
| Connection 1 | Internal thread metric |
| Contour code connection 1 | Several |
| Nominal diameter connection 2 | 3/4 inch (20) |
| Outer pipe diameter connection 2 [mm] | 20 |
| Connection 2 | Internal thread metric |
| Contour code connection 2 | Several |
| Main colour fitting | Other |
| Flange standard | ANSI |
| Flange compression class | PN 10 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Zeta value | 1.5 - 5.4 |
| High tensile strength | Yes |
| Length [mm] | 25 |
| Wrench width [mm] | 27 |
| Tightening moment [Nm] | 25 - 35 |
| Medium temperature (continuous) [°C] | 70 - 95 - 5 - 95 |
| Max. operating pressure at 20 °C [bar] | 10 |
| Max. operating pressure at max. medium temperature [bar] | 10 |
| With thermal insulation | No |
| With sealing rings/gaskets | Yes |
| Capped | No |
| With connection indicator | Yes |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
| Type approval according to BBR/EKS | No |
| Height [mm] | 30 |
| Depth [mm] | 30 |
| Weight [kg] | 1 |
