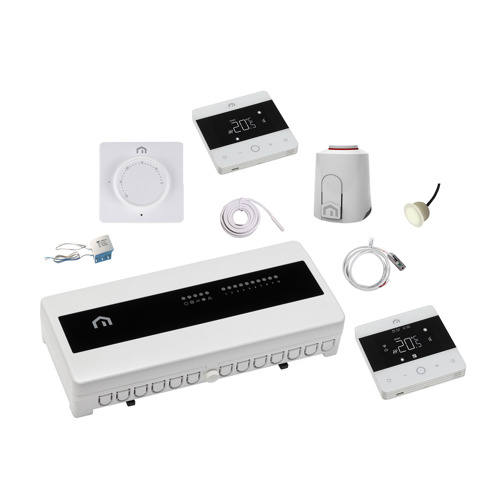

Unisenza UFH Controls System
Unified control for underfloor radiant heating and cooling.
- Efficient Temperature Control
- Flexible Installation
- Energy Efficiency
- User-Friendly
- Smart Connectivity
Product description
Simply set the ideal temperature with one of three user-friendly thermostats; a simple electronic dial thermostat, a modern digital thermostat, or a Wifi programmable thermostat with clock and plug & play APP control. Once the temperature is set, the wiring centre takes over and translates the settings from the thermostat into open-loop signals for the thermal actuators. This way, each individual heating circuit receives exactly the amount of water that every room needs to maintain the temperature set on the thermostat.
Technical Specifications
| ETIM Class | EC004240 - Sensor (HVAC) |
|---|---|
| Regulation type on/off | Yes |
| Scope of application | Room |
| Connection type primary side | 2-pipe |
| Model | On/Off |
| Regulation type modulating | Yes |
| With mounting material | No |
| Suitable for cooling | Yes |
| Type of power supply | 24 V AC |
| Communications protocol | Other |
| Suitable for wall mounting | No |
| Material | Plastic |
| Connection | 3-/4-wire |
| Type of power supply | 24 V |
| Suitable for ceiling mounting | Yes |
| Position primary connection | Bottom |
| With receiver | No |
| Connection | 3-wire |
| Suitable for duct mounting | Yes |
| With receiver | No |
| Suitable for tube mounting | No |
| External sensor | No |
| Suitable for air | Yes |
| Thermal feedback | None |
| External sensor | Yes |
| Suitable for liquids | No |
| With valves on primary connection | No |
| Control characteristic | P |
| With thermal feedback | No |
| Suitable for gases | No |
| Suitable for heating | Yes |
| Control characteristic | PI |
| With housing | No |
| Number of heater outputs | 1 |
| Adaptive (self-learning) | Yes / No |
| Cover attachment | Other |
| Suitable for cooling | Yes |
| Suitable for heating | Yes |
| Sensor element inside housing | Yes |
| Number of cooler outputs | 1 |
| Number of heater outputs | 1 |
| Sensor element outside housing | No |
| Max. operating pressure [bar] | 0 |
| Suitable for cooling | Yes |
| Fixed cable to sensor | Yes |
| With mixing valve | No |
| Adjustable differential | Yes |
| Number of cooler outputs | 1 |
| Cable length [m] | 1.5 |
| Temperature readable | Yes |
| Ventilation | No |
| Sensor length [mm] | 30 |
| With sound indicator | No |
| Number of ventilation outputs | 0 |
| Insert length [mm] | 30 |
| Sensor/feeler type | Resistance sensor |
| Diameter sensor element [mm] | 6 |
| Mounting method | Surface mounted/recessed mounted |
| Adjustable differential | Yes |
| Material element | Other |
| Sensor/feeler type | Resistance sensor |
| Technology | Other |
| With display | No |
| Temperature readable | Yes |
| Active temperature measurement | No |
| With display | Yes |
| Passive temperature measurement | Yes |
| Operation | Turn |
| Type of clock | Other - Year clock |
| Average temperature measuring | No |
| Concealed operation | No |
| Clock model | Digital |
| Number of measuring points | 1 |
| With tap water circuit | No |
| Overtime switch | No |
| Measurement of CO2 | No |
| Contact type | Change-over contact (NO/NC) |
| Optimisation | Yes |
| Measurement of VOC | No |
| With thermometer | No |
| Max. contact voltage [V] | 24 |
| With tap water circuit | No |
| Measurement of relative air humidity | No |
| Temperature measurement supply | None |
| Max. contact load [A] | 4.2 |
| Operation | Button |
| Measurement of absolute air humidity | No |
| Temperature measurement return | None |
| Degree of protection (IP) | IP30 |
| Suitable for floor heating control | Yes |
| Enthalpy measurement | No |
| Supply voltage [V] | 24 - 230 |
| Degree of protection (NEMA) | 1 |
| Suitable for district heating control | Yes |
| Measurement of dewpoint | No |
| Frequency [Hz] | 50 |
| Explosion-proof | No |
| Remote operation possible | Yes / No |
| Particulate matter measurement (PM) | No |
| Power consumption in operation [W] | 3 |
| Colour | White |
| IFTTT support available | Yes / No |
| With de-aeration | No |
| RAL-number | 9016 |
| With presence perception | No |
| With pressure gauge | No |
| Height [mm] | 82 |
| Weather-dependent control system | No |
| With filling- and draining valve | No |
| With filling/drain tap | No |
| Width [mm] | 85 |
| Number of switching programmes | 5 |
| Depth [mm] | 17 |
| Contact type | Change-over contact (NO/NC) |
| Max. contact voltage [V] | 24 |
| Class of the temperature control | I |
| Max. contact load [A] | 0.4 |
| Standby power consumption (solstandby) [W] | 1 |
| Degree of protection (IP) | IP30 |
| Compatible with Apple HomeKit | No |
| Colour | White |
| Compatible with Google Assistant | No |
| RAL-number | 9016 |
| Offset setting possible | No |
| Compatible with Amazon Alexa | No |
| Width [mm] | 85 |
| Trend representation | No |
| With thermal actuator | No |
| IFTTT support available | No |
| Depth [mm] | 45 |
| Error registration possible | No |
| Height [mm] | 85 |
| Sensor type | NTC, 10K |
| With ceramic valve | No |
| Class of the temperature control | II |
| Tolerance [%] | 5 |
| Standby power consumption (solstandby) [W] | 1 |
| Potentiometer with adjustment knob | No |
| With wall-mounting bracket | Yes |
| Supporting protocol for BACnet | No |
| Width [mm] | 280 |
| Supporting protocol for Modbus | No |
| Height [mm] | 120 |
| Supporting protocol for MP (multi point) | No |
| Depth [mm] | 60 |
| Supporting protocol for KNX | No |
| With casing | Yes |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Standby push button | No |
| Wireless | No |
| With display | No |
| Type of power supply | Other |
| Type of electric connection | Other |
| With reverse polarity protection | No |
| Explosion-proof | No |
| Degree of protection (IP) | IP65 |
| Housing colour | White |
| UV resistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Weight [kg] | 0.525 |
