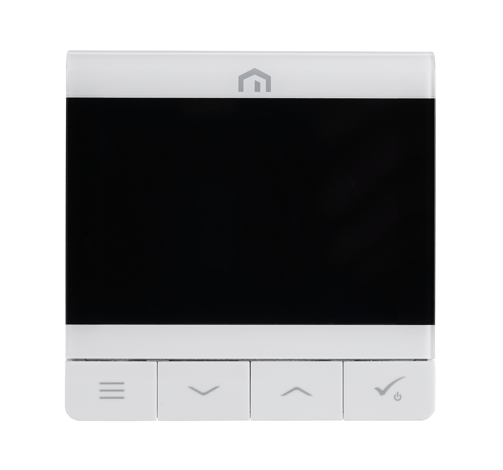

Unisenza Plus UFH Thermostat 230V
Wired thermostat for underfloor heating and hot water control.
- Ultra-slim design
- Standard flush-mounted box
- Can be connected to Gateway for app control
- Geolocation for flexible temperature management
- Floor sensor and discrete air sensor available
Product description
The Myson Unisenza Plus UFH room thermostats 230V and 24V are wired ZigBee 3.0 room thermostats that are ideal for hydraulic underfloor heating and cooling systems. It has a relay for a load-dependent cable connection to the Unisenza Plus safety edge and for controlling the electrothermal actuators. It communicates with the Unisenza Plus Gateway via a ZigBee 3.0 protocol to allow remote access via a mobile Android or IoS APP. It also has a multifunctional input for connecting additional accessories to further optimize the application possibilities.
Technical Specifications
| ETIM Class | EC003263 - Smart thermostat |
|---|---|
| Regulation type on/off | No |
| Regulation type modulating | Yes |
| Communications protocol | Brand-dependent |
| Type of power supply | 230 V |
| Connection | 3-wire |
| With receiver | No |
| External sensor | No |
| With thermal feedback | No |
| Control characteristic | PI |
| Adaptive (self-learning) | Yes |
| Suitable for heating | Yes |
| Number of heater outputs | 1 |
| Suitable for cooling | Yes |
| Number of cooler outputs | 1 |
| Ventilation | No |
| Adjustable differential | No |
| Sensor/feeler type | Resistance sensor |
| Temperature readable | Yes |
| With display | Yes |
| Type of clock | Year clock |
| Clock model | Digital |
| Overtime switch | Yes |
| Optimisation | Yes |
| With tap water circuit | No |
| Operation | Button |
| Suitable for floor heating control | Yes |
| Suitable for district heating control | Yes |
| Remote operation possible | Yes |
| IFTTT support available | Yes |
| With presence perception | No |
| Weather-dependent control system | No |
| Number of switching programmes | 1 |
| Contact type | Change-over contact (NO/NC) |
| Max. contact voltage [V] | 24 |
| Max. contact load [A] | 3 |
| Degree of protection (IP) | IP30 |
| Colour | White |
| RAL-number | 9016 |
| Width [mm] | 90 |
| Depth [mm] | 85 |
| Height [mm] | 75 |
| Class of the temperature control | II |
| Standby power consumption (solstandby) [W] | 3 |
| Weight [kg] | 0.15 |
