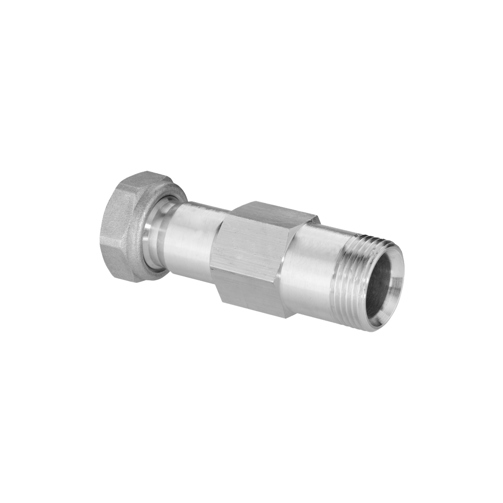

iVector S2 Valve extension
81mm spacer for use with return valve when pipe connection is from the floor.
- Suitable for iVector S2
- For use when connected through the floor
- Ease of installation
- Improves system efficiency
- Reliable performance
Product description
81mm spacer for use with return valve for when pipe connection of the iVector S2 is from the floor
Technical Specifications
| ETIM Class | EC003024 - Fitting with 2 connections |
|---|---|
| Material connection 1 | Brass |
| Material quality connection 1 | CuZn36Pb2As (CW602N) |
| Surface protection connection 1 | Nickel-plated |
| Material connection 2 | Brass |
| Material quality connection 2 | CuZn36Pb2As (CW602N) |
| Surface protection connection 2 | Nickel-plated |
| Shape | Straight |
| System-specific | Yes |
| Nominal diameter connection 1 | 3/4 inch (20) |
| Outer pipe diameter connection 1 [mm] | 20 |
| Wall thickness, connection 1 [mm] | 3 |
| Connection 1 | Internal thread metric |
| Contour code connection 1 | Several |
| Nominal diameter connection 2 | 3/4 inch (20) |
| Outer pipe diameter connection 2 [mm] | 20 |
| Connection 2 | Internal thread metric |
| Contour code connection 2 | Several |
| High tensile strength | Yes |
| Length [mm] | 810 |
| Max. operating pressure at 20 °C [bar] | 10 |
| Max. operating pressure at max. medium temperature [bar] | 10 |
| With thermal insulation | No |
| With sealing rings/gaskets | Yes |
| Capped | No |
| With connection indicator | Yes |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
| Type approval according to BBR/EKS | No |
| Depth [mm] | 20 |
| Weight [kg] | 0.25 |
