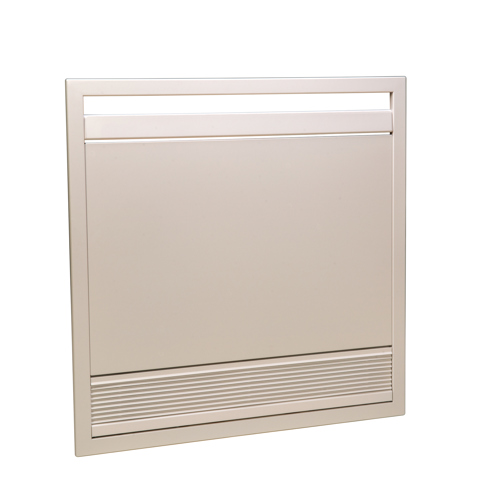

Vertical casing front cover for iVector S2
Vertical front casing for the iVector S2 recessed model
- Seamless integration
- Efficient airflow
- Protective cover
- Enhanced performance
- Easy installation
Product description
Vertical casing cover with air intake grille. For use with standard metal casing where the iVector S2 is being installed within a wall recess
Technical Specifications
| ETIM Class | EC010061 - Mechanical accessories, ventilator convector |
|---|---|
| Type of accessory/spare part | Rear panel |
| Height [mm] | 377 - 545 |
| Width / Length [mm] | 281 - 1504 |
| Depth [mm] | 17 - 1780 |
| Weight [kg] | 7.9 - 14 |
Items
| Item code | Item description | Weight [kg] | CO2/Kg equivalent per kg of material |
|---|---|---|---|
| VSI-11WALLCVR2P | Vertical casing for wall recessed units - 2 Pipe - VSI 11 | 10.48 | - |
| VSI-11WALLCVR4P | Vertical casing for wall recessed units - 4 Pipe - VSI 11 | 10.48 | - |
| VSI-13WALLCVR2P | Vertical casing for wall recessed units - 2 Pipe - VSI 13 | 12.34 | - |
| VSI-13WALLCVR4P | Vertical casing for wall recessed units - 4 Pipe - VSI 13 | 12.34 | - |
| VSI-15WALLCVR2P | Vertical casing for wall recessed units - 2 Pipe - VSI 15 | 14 | - |
| VSI-15WALLCVR4P | Vertical casing for wall recessed units - 4 Pipe - VSI 15 | 14 | - |
| VSI-7WALLCVR2P | Vertical casing for wall recessed units - 2 Pipe - VSI 7 | 7.9 | - |
| VSI-7WALLCVR4P | Vertical casing for wall recessed units - 4 Pipe - VSI 7 | 7.9 | - |
| VSI-9WALLCVR2P | Vertical casing for wall recessed units - 2 Pipe - VSI 9 | 9.24 | - |
| VSI-9WALLCVR4P | Vertical casing for wall recessed units - 4 Pipe - VSI 9 | 9.24 | - |
