Decorative TRV Valves

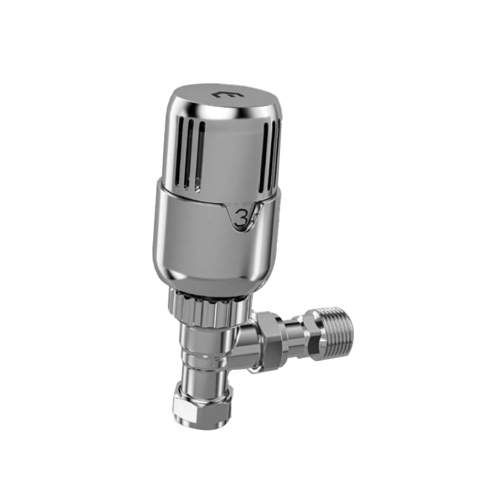

Myson Decorative TRV is a polished chrome thermostatic radiator valve
- High-quality chrome finish
- Thermostatic control
- Compression or pushfit connections
- Straight and angled versions
- Ideal for modern radiators
Product description
Myson offer a selection of polished chrome Decorative TRVs for projects that need that extra special finishing touch with thermostatic control. These stylish chrome thermostatic radiator valves include compression and pushfit connections, with straight and angle options available. A Decorative Pack is available and comes complete with lockshield, 15mm only.
Technical Specifications
| ETIM Class | EC010064 - Thermostatic control head for valve |
|---|---|
| Thermostatic adjustment element connection | Other |
| Connection to valve | M30 x 1.5 |
| Housing material | Brass |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Surface protection | Chromium-plated |
| Model | Straight |
| Size of radiator connection | 1/2 inch (15) |
| Suitable for radiator | Yes |
| Size of pipe connection | 1/2 inch (15) - 3/8 inch (10) |
| Vandal proof | No |
| Thermostatic adjustment element connection | External thread |
| With anti-theft security | No |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Suitable for heating | Yes |
| Shape | Right-angled - Straight |
| Suitable for cooling | No |
| Adjustment element | Liquid-filled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| Adjustment range [°C] | 8 - 28 |
| With bent tailpiece | No |
| Water temperature influence [K] | 0.55 |
| With compression set | Yes |
| Hysteresis [K] | 0.3 |
| Pipe diameter compression set [mm] | 15 |
| Blocking/limiting adjustment range | Yes |
| Can be preset | No |
| With zero (off) position | Yes |
| Presetting | None |
| Mechanically lockable at zero (off) position | Yes |
| Operation | Thermostatic without button |
| Frost protected | Yes |
| Suitable for single pipe system | No |
| Response time [s] | 1500 |
| Suitable for two pipe system | Yes |
| Operation by Bluetooth | No |
| Thermostatically prepared | Yes |
| Operation by app | No |
| Reverse direction of flow | Yes |
| With web interface | No |
| Programme clock | No |
| With dust cap | No |
| Colour | Chrome |
| Adjustment aid for visually impaired people | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 |
| Pressure independent | No |
| Height [mm] | 97 |
| Width / Length [mm] | 52 - 100 |
| Depth [mm] | 52 - 55 |
| Differential Pressure Influence [K] | 60 |
| Weight [kg] | 0.15 - 0.489 |
