Decorative Modern Valves

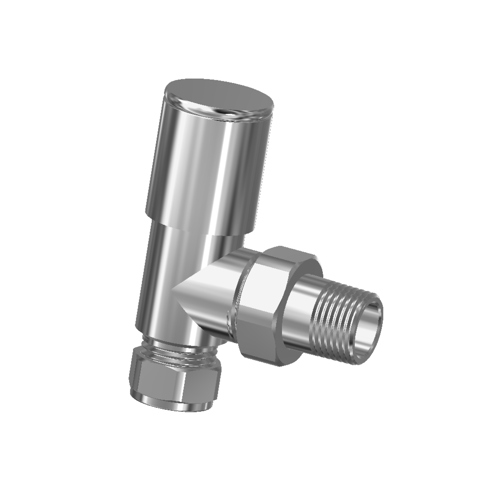

Myson Decorative Modern is a manual wheelhead or lockshield valve
- Polished chrome finish
- Angled and straight options
- Lockshield or wheelhead
- Compression or pushfit connections
- Easy maintenance
Product description
Myson offer a selection of decorative manual valves for projects that need that extra special finishing touch as they are beautifully finished in highly polished chrome. The Decorative Modern Valve is available in compression and pushfit connections, with straight and angle options in both 10mm and 15mm. See also Decorative Slimline and Decorative Traditional options.
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 3/8 inch (10) - 1/2 inch (15) |
| Shape | Straight - Right-angled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Manually operated |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | No |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 - 120 |
| Pressure independent | No |
| Width / Length [mm] | 100 - 130 |
| Depth [mm] | 55 - 120 |
| Weight [kg] | 0.302 - 0.405 |
Items
| Item code | Item description | Height [mm] | Weight [kg] | CO2/Kg equivalent per kg of material |
|---|---|---|---|---|
| DEC10LWACPF90 | Decorative 10mm LS Or WH Angle Polished Chrome C/W Pushfit 90o Elbow | 120 | 0.354 | - |
| DEC10LWSCPF90 | Decorative 10mm LS Or WH Strght Polished Chrome C/W Pushfit 90o Elbow | 120 | 0.345 | - |
| DEC15LWAC | Decorative 15mm Lockshield Or Wheelhead Angle Polished Chrome | 55 | 0.312 | - |
| DEC15LWACPF90 | Decorative 15mm LS Or WH Angle Polished Chrome C/W Pushfit 90o Elbow | 120 | 0.405 | - |
| DEC15LWSC | Decorative 15mm Lockshield Or Wheelhead Straight Polished Chrome | 120 | 0.302 | - |
| DEC15LWSCPF90 | Decorative 15mm LS Or WH Strght Polished Chrome C/W Pushfit 90o Elbow | 120 | 0.3965 | - |
