Decorative TRV Valve Pack
Pack includes a decorative polished chrome TRV & lockshield
- Polished chrome finish
- Thermostatic control
- Matching lockshield included
- Angled and straight options available
- Compatible with modern and traditional interiors
Product description

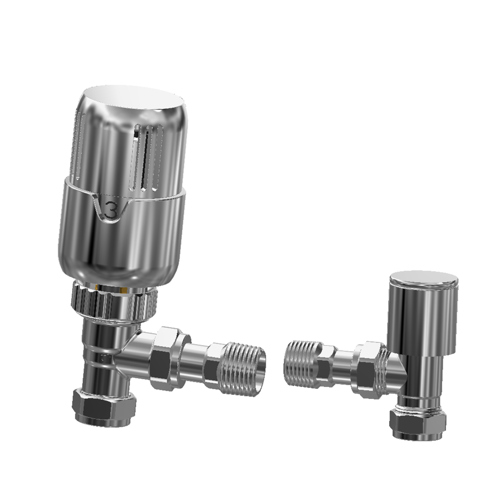

Myson offer a selection of polished chrome Decorative TRVs for projects that need that extra special finishing touch with thermostatic control. The Decorative Radpack includes a polished chrome TRV and lockshield, available in straight or angled options.
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 1/2 inch (15) |
| Thermostatic adjustment element connection | External thread |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Shape | Straight - Right-angled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Thermostatic without button |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | Yes |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 |
| Pressure independent | No |
| Width / Length [mm] | 100 |
| Depth [mm] | 55 |
| Weight [kg] | 0.619 - 0.673 |
