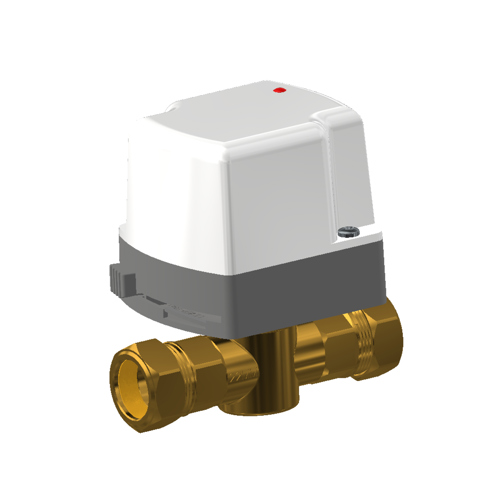

Motorised Valves
Myson Motorised Valves are a compatible replacement for most brands
- Compatible and reliable
- Powerful motor with high-grade insulation
- Manual override with spring return
- Two port and 3 port available
- Neon valve position indicators
Product description
The Myson range of Motorised Valves has been designed with complete reliability and compatibility in mind. Our motorised valves are compatible as replacements to all leading makes, so you don’t need to look anywhere else. The range has low contact resistance switching for compatibility with the low voltage/low current switching found on many boilers throughout the UK and Europe.
Technical Specifications
| ETIM Class | EC010193 - Thermal servomotor |
|---|---|
| Model | Other |
| Housing material | Brass |
| Housing material | Brass |
| Connection to stop valve | Other |
| Supply voltage | 230 V AC |
| Nominal diameter | 1 inch (25) - 3/4 inch (20) |
| Nominal diameter | 1 inch (25) - 3/4 inch (20) |
| Control signal | Other |
| Outer pipe diameter all connections [mm] | 22 - 28 |
| Outer pipe diameter all connections [mm] | 22 - 28 |
| Function | Deactivated when closed NC |
| Connections | Compression ring |
| Connections | Compression ring |
| Automatic stroke recognition | No |
| With coupling connection 1 | Yes |
| With coupling connection 1 | Yes |
| Protected against overvoltage | No |
| With coupling connection 2 | No |
| With coupling connection 2 | Yes |
| Auxiliary contacts | No |
| With coupling connection 3 | Yes |
| With end contacts | Yes |
| First open | No |
| With position indicator | Yes |
| Max. pressure difference in opened position [bar] | 10 |
| Medium temperature (continuous) [°C] | 5 - 95 |
| Suitable for manual operation | Yes |
| Medium temperature (continuous) [°C] | 5 - 95 |
| Cable length [m] | 1.1 |
| Kvs value [m³/h] | 6.6 |
| Surface protection | Untreated |
| With valve adapter | No |
| Kvs value [m³/h] | 6.6 |
| Colour | White |
| Supply voltage | 230 V AC |
| Voltage type | AC |
| Length [mm] | 11 - 107 |
| Supply voltage | 230 V AC |
| Width [mm] | 11 |
| Height [mm] | 11 - 86 |
| Adjustable operating range | No |
| Auxiliary contacts | No |
| With end contacts | No |
| Suitable for manual operation | Yes |
| Auxiliary contacts | No |
| Explosion-proof | No |
| With end contacts | No |
| Suitable for manual operation | Yes |
| Ambient temperature [°C] | 5 - 52 |
| Explosion-proof | No |
| Ambient temperature [°C] | 5 - 52 |
| Height [mm] | 30 - 90 |
| Width [mm] | 112 |
| Depth [mm] | 30 - 73 |
| Height [mm] | 151 |
| Width [mm] | 112 |
| Depth [mm] | 73 |
| Weight [kg] | 0.51 - 1.1556 |
