Petite Thermostatic head only

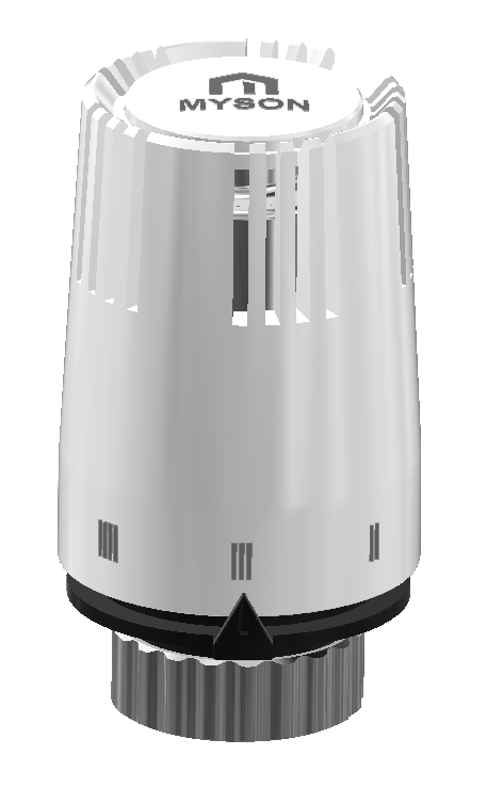

Myson Petit thermostatic radiator valve - head only
- Thermostatic radiator valve head.
- Attractive design.
- Accurate temperature control.
- Fits most TRV bodies.
- Reliable performance.
Product description
The Myson Petite TRV head combines attractive design with total reliability. It has a liquid sensor fitted at its heart, guaranteeing years of accurate temperature control. Suitable for most TRV bodies with an M30 thread.
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 3/8 inch (10) - 1/2 inch (15) |
| Thermostatic adjustment element connection | External thread |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Shape | Straight - Right-angled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Thermostatic without button |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | Yes |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 |
| Pressure independent | No |
| Width / Length [mm] | 100 |
| Depth [mm] | 55 |
| Weight [kg] | 0.339 - 0.663 |
Items
| Item code | Item description | Height [mm] | Weight [kg] | CO2/Kg equivalent per kg of material |
|---|---|---|---|---|
| PETPAK10ACDPF90 | Petite Pack-10mm Petite TRV & Matchmate LS angle chrome DO-PF90 elbow | 55 | 0.663 | - |
| PETPAK10ACPF90 | Petite Pack-10mm Petite TRV & Matchmate LS angle chrome - PF90 elbow | 55 | 0.595 | - |
| PETPAK15AC | Petite Pack - 15mm Petite TRV & Matchmate LS angle chrome | 55 | 0.509 | - |
| PETPAK15ACD | Petite Pack - 15mm Petite TRV & Matchmate LS angle chrome drain off | 55 | 0.574 | - |
| PETPAK15SC | Petite Pack - 15mm Petite TRV & Matchmate LS straight chrome | 55 | 0.563 | - |
| PETTRV10AC | Petite 10mm TRV angle chrome | 55 | 0.353 | - |
| PETTRV10ACPF90 | Petite 10mm TRV angle chrome c/w pushfit 90 degree elbow | 55 | 0.339 | - |
| PETTRV15AC | Petite 15mm TRV angle chrome | 55 | 0.345 | - |
| PETTRV15ACPF90 | Petite 15mm TRV angle chrome c/w pushfit 90 degree elbow | 55 | 0.437 | - |
| PETTRV15SC | Petite 15mm TRV straight chrome | 55 | 0.371 | - |
