Myson Plus Manual Valves

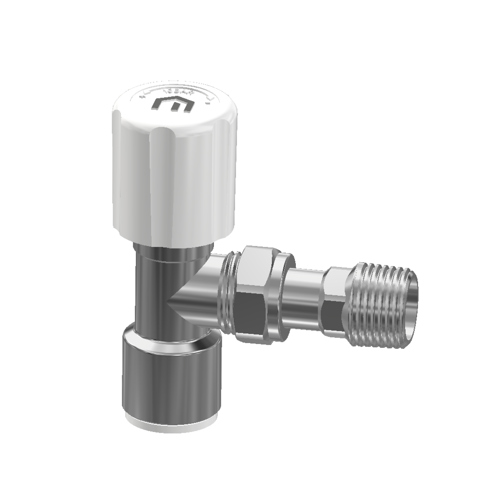

Myson Plus Angled Manual Valves
- Manual Valve
- Angled
- Chrome Finish
- Pushfit Option
- 10mm or 15mm Connections
Product description
The PLUS range is available in either 10mm or 15mm connections, in angled variant only.
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 1/2 inch (15) |
| Shape | Right-angled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Manually operated |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | No |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 - 120 |
| Pressure independent | No |
| Width / Length [mm] | 100 - 130 |
| Depth [mm] | 55 - 120 |
| Weight [kg] | 0.18 |
