Myson Plus Radiator Packs

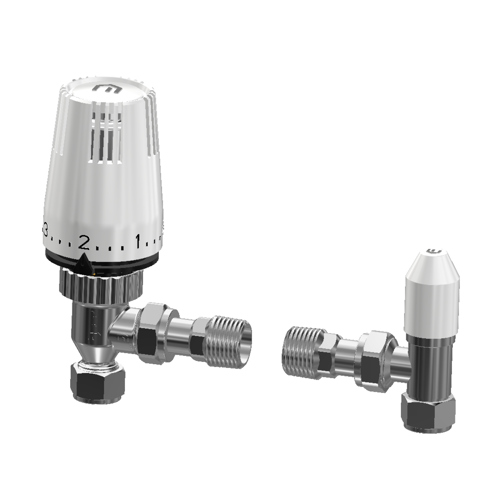

Myson Plus Angled Chrome TRV with Matchmate lockshield
- TRV and lockshield pack
- Angled
- Chrome 3 finish
- Drain off option
- Products available separately
Product description
The Myson Plus Radiator Pack offers a simple but effective thermostatic radiator valve, with pushfit options and a chrome 3 finish, coupled with the best-selling Matchmate lockshield. The pack is available in either 10mm or 15mm connections, in angled variant only. The Matchmate lockshield is available with optional drain-off.
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 3/8 inch (10) - 1/2 inch (15) |
| Thermostatic adjustment element connection | External thread |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Shape | Right-angled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Thermostatic without button |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | Yes |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 |
| Pressure independent | No |
| Width / Length [mm] | 100 |
| Depth [mm] | 55 |
| Weight [kg] | 0.359 - 0.562 |
Items
| Item code | Item description | Height [mm] | Weight [kg] | CO2/Kg equivalent per kg of material |
|---|---|---|---|---|
| PLUSPAK10AC | Plus Radpack 10mm Plus TRV & Matchmate Lockshield Pack Angle Chrome | 55 | 0.359 | - |
| PLUSPAK10ACD | Plus Radpack 10mm Plus TRV & Matchmate LS Pack Angle Chrome Drain Off | 55 | 0.56 | - |
| PLUSPAK15AC | Plus Radpack 15mm Plus TRV & Matchmate Lockshield Pack Angle Chrome | 55 | 0.496 | - |
| PLUSPAK15ACD | Plus Radpack 15mm Plus TRV & Matchmate LS Pack Angle Chrome Drain Off | 55 | 0.562 | - |
