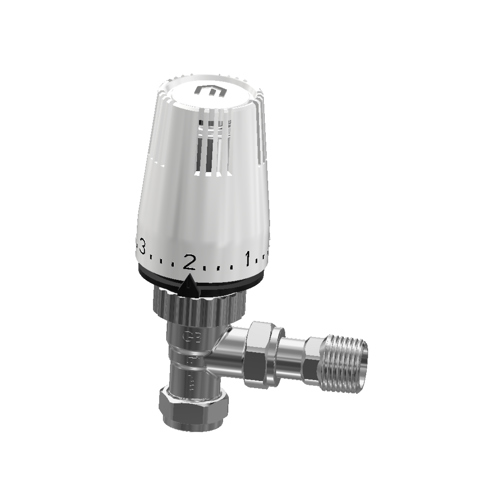

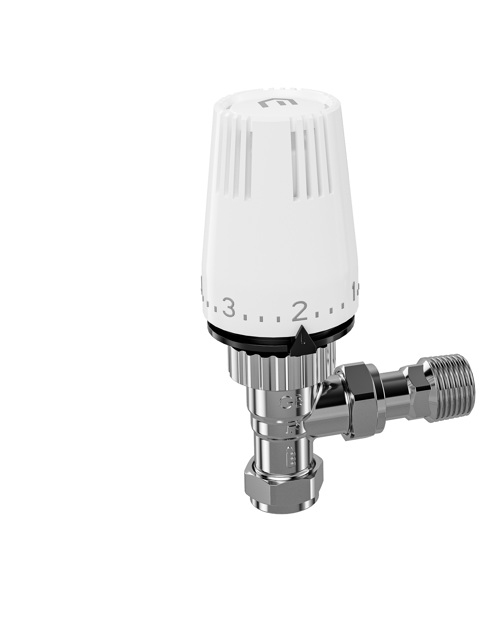

Myson Plus TRV Valves
Myson Plus TRV is a thermostatic radiator valve range
- Simple installation
- Durable finish
- Accurate control
- Versatile connectivity
- Comprehensive solution
Product description
Myson Plus TRV is a simple but effective thermostatic radiator valve with pushfit options and a chrome finish. The Myson Plus TRV range is available in either 10mm or 15mm connections, in angled variant only. A Myson Plus Pack is also available which includes the best-selling Matchmate lockshield, with optional drain off.
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 3/8 inch (10) - 1/2 inch (15) |
| Thermostatic adjustment element connection | External thread |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Shape | Right-angled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Thermostatic without button |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | Yes |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 |
| Pressure independent | No |
| Width / Length [mm] | 100 |
| Depth [mm] | 55 |
| Weight [kg] | 0.34 - 0.408 |
