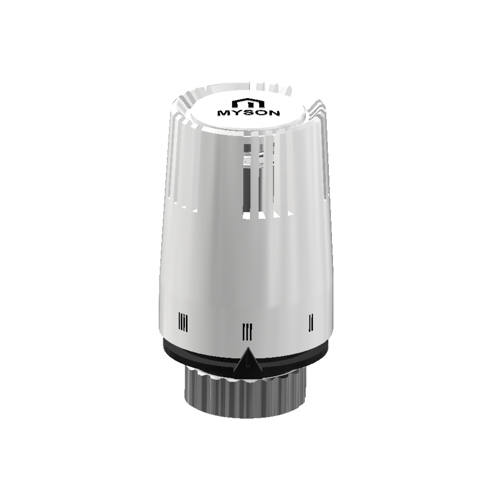

Petite TRV Head
The Myson Petite TRV Head is a slimline Thermostatic Radiator Valve
- Available in straight and angled
- Pushfit option available
- Slimline design
- Accurate temperature control
- High-quality finish
Product description
The Myson Petite TRV Head is a beautifully designed Thermostatic Radiator Valve for today’s heating systems. The slimline Myson Petite TRV combines attractive design with total reliability, it also incorporates our 2-way flow technology. Myson Petite TRV is available as a single valve or a convenient ‘TRV & manual’ valve pack, in either 10mm or 15mm sizes and finished in a bright nickel.
Myson offer a range of TRV bodies and accessories to accompany radiators throughout the range. TRV bodies conform to EN 215-1, are available as angled, horizontal angled, straight and also come in a range of finishes.
Technical Specifications
| ETIM Class | EC010064 - Thermostatic control head for valve |
|---|---|
| Thermostatic adjustment element connection | Other |
| Connection to valve | M30 x 1.5 |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Model | Straight |
| Suitable for radiator | Yes |
| Vandal proof | No |
| With anti-theft security | No |
| Suitable for heating | Yes |
| Suitable for cooling | No |
| Adjustment element | Liquid-filled |
| Adjustment range [°C] | 0 - 28 |
| Water temperature influence [K] | 0.55 |
| Hysteresis [K] | 0.9 |
| Blocking/limiting adjustment range | No |
| With zero (off) position | Yes |
| Mechanically lockable at zero (off) position | Yes |
| Frost protected | Yes |
| Response time [s] | 1560 |
| Operation by Bluetooth | No |
| Operation by app | No |
| With web interface | No |
| Programme clock | No |
| Colour | White |
| RAL-number | 9016 |
| Adjustment aid for visually impaired people | No |
| Height [mm] | 48.5 |
| Width / Length [mm] | 81 |
| Depth [mm] | 48.5 |
| Differential Pressure Influence [K] | 60 |
| Weight [kg] | 0.145 |
