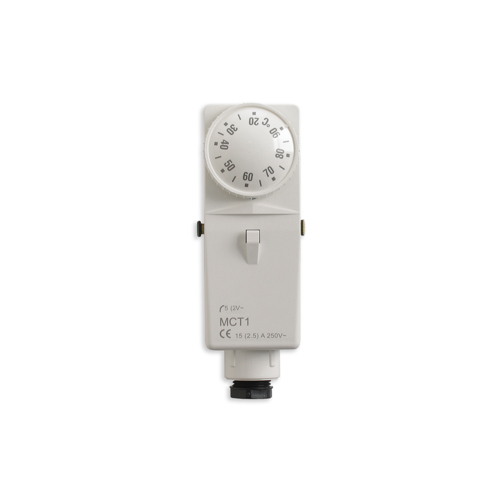

Cylinder Thermostat
Monitors & controls the water temperature in the hot water cylinder
- Easy connection
- Switching differential 5-10°C
- Wide operating range
- High mounting temperature
- Safety feature
Product description
Myson's Cylinder Thermostat is used for monitoring and controlling the temperature of the hot water stored within the hot water cylinder. When used with a thermostatic control for the heating circuit it will give boiler interlock providing a safety feature. It can also be used as a pipe thermostat in conjunction with a frost thermostat to ensure a boiler does not run uncontrolled during cold weather. It is designed to compliment the MRT1 room theromstat.
Technical Specifications
| ETIM Class | EC010927 - Room thermostat |
|---|---|
| Model | On/Off |
| Type of power supply | 230 V AC |
| Connection | 3-wire |
| With receiver | No |
| Measuring range [°C] | 10 - 90 |
| External sensor | No |
| Thermal feedback | None |
| Control characteristic | Other |
| Suitable for heating | Yes |
| Suitable for heating | Yes |
| Number of heater outputs | 1 |
| Suitable for cooling | No |
| Number of cooler outputs | 0 |
| Differential value [K] | 278.15 - 283.15 |
| Adjustable differential | No |
| Temperature readable | No |
| With sound indicator | No |
| Sensor/feeler type | Other |
| Mounting method | Surface mounted |
| Number of modules (module system) | 0 |
| With display | No |
| Operation | Turn |
| Concealed operation | No |
| With tap water circuit | No |
| Contact type | Normally open contact (NO) |
| Max. contact voltage [V] | 230 |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Colour | White |
| RAL-number | 9016 |
| Height [mm] | 85 |
| Width [mm] | 40 |
| Depth [mm] | 25 |
| Standby power consumption (solstandby) [W] | 1 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Weight [kg] | 0.2786 |
Items
| Item code | Item description | Height [mm] | Width [mm] | Depth [mm] | Weight [kg] | CO2/Kg equivalent per kg of material |
|---|---|---|---|---|---|---|
| MCT1 | Cylinder Thermostat | 85 | 40 | 25 | 0.2786 | - |
