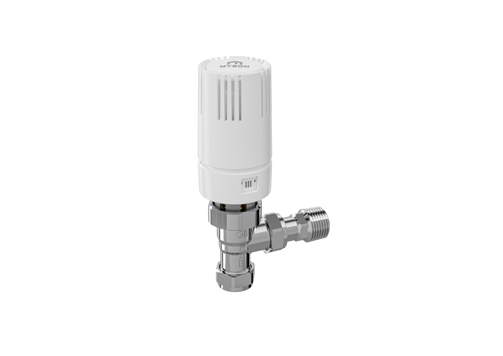

TRV2
Myson TRV2 is a complete thermostatic radiator valve range
- Comprehensive TRV range
- Accurate temperature control
- Available in 10 or 15mm
- Angled and straight options
- Radiator pack available with lockshield
Product description
Myson TRV2 is the most complete thermostatic radiator valve range available for today’s central heating systems. The Myson TRV2 simplifies installation and removes the worry of costly call-backs. It has a liquid sensor fitted at its heart, guaranteeing years of accurate temperature control. It is available with a chrome finish, compression and push fit connections, as well as straight and angled variants. Also available as a Radiator pack with the Matchmate or Matchmaster lockshield.
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 1/2 inch (15) - 3/8 inch (10) - Other |
| Thermostatic adjustment element connection | External thread |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Shape | Straight - Right-angled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Thermostatic without button |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | Yes |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 55 |
| Pressure independent | No |
| Width / Length [mm] | 100 |
| Depth [mm] | 55 |
| Weight [kg] | 0.378 - 0.499 |
