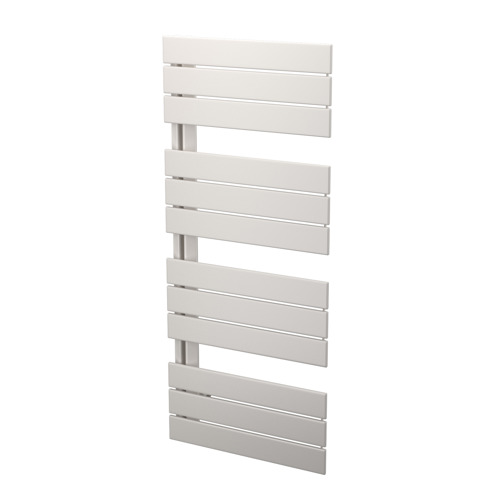

Myson Maranoa Flat Tube Towel Radiator
- Contemporary design
- Left or right connection
- Stylish, asymmetric design
- Dual fuel kit available
- High efficiency
Product description
The Myson Maranoa has an attractive asymmetric design that uses blocks and spaces to create a distinctive appearance. The large flat tubes are both stylish and practical and, with left or right hand side mounting options, it offers flexibility in any project. Maranoa is available in selected RAL, metallic, or special metallic finishes. Suitable for hydronic heating systems, and optional dual fuel.
Technical Specifications
| ETIM Class | EC011023 - Tube radiator |
|---|---|
| Material | Steel |
| Material quality | Other |
| Number of tubes | 10 |
| Height [mm] | 1430 |
| Length [mm] | 600 |
| Depth [mm] | 62 |
| Depth from wall to front side [mm] | 120 - 130 |
| Shape of radiation tube | Rectangular |
| Shape of collector | Triangular |
| Installation | Vertical |
| Radiant tube | Horizontal |
| Radiator design | Straight |
| Towel radiator model | Yes |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 446 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 855 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 812 |
| N-exponent | 1.272 |
| Max. operating pressure [bar] | 4 |
| Water content [l] | 9 |
| With fan heater | No |
| Max. input power heating [W] | 500 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Surface protection | Lacquered |
| Suitable for damp space | Yes |
| With towel holder | No |
| With mirror | No |
| Mounting method | On wall |
| With side lining | No |
| With top cladding | No |
| Swivelling | No |
| Applicable with hot tap water circuit | No |
| Number of standard connections | 2 |
| Connection 1, bottom left | Inlet/outlet flow |
| Connection 8, bottom right | Double connection, inlet-outlet |
| Thread size (inch) | 1/2 inch |
| With single-point connection | No |
| Thread connection | Internal thread |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With consoles | Yes |
| With blind stops | Yes |
| With mounting material | Yes |
| Factor K | 5.9 |
| Watt Absolute [W] | 855 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 1522 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 2917 |
| Max. Operating Temperature [°C] | 110 |
| Mounting Direction | Vertical |
| Number of wall brackets | 4 |
| Weight [kg] | 2.216 |
