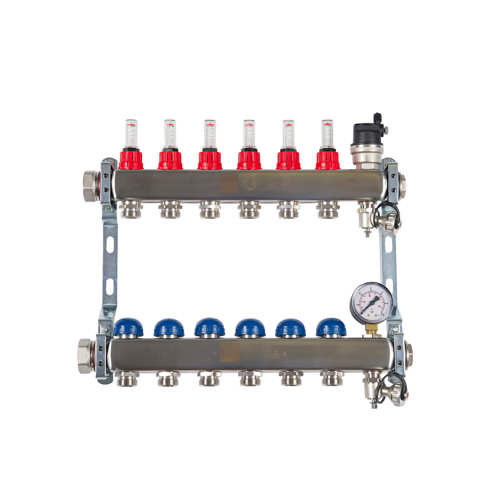

Premium Manifold
Myson's Premium Manifold includes a flow meter and automatic air vent
- Easy to install
- Low maintenance
- Integrated valves
- Flow meter included
- Automatic air vent
Product description
Myson Floortec underfloor heating has a full range of quality controls to ensure that you get the most out of Floortec underfloor heating systems. The controls are designed by Myson's heating experts to meet the requirements of our customers and will perfectly complement our systems.
Myson Floortec Premium Manifold is the central point to most underfloor heating systems. The Premium Manifold is responsible for distributing mixed water provided by the manifold control centre to each heating circuit and is capable of operating at a lower flow temperature. It is supplied pre-assembled with an automatic air vent, pressure gauge, isolating valves for flow and return, flow meter adjustment key, fibre washers, manifold mounting plugs and screws, brass hose connections for filling and flushing, pipe inserts and bend formers. Compatible with Myson Floortec Premium Pump Pack.
Technical Specifications
| ETIM Class | EC010292 - Floor heating control unit |
|---|---|
| Connection type primary side | 2-pipe |
| Suitable for cooling | Yes |
| Material | Stainless steel |
| Position primary connection | Left |
| Primary connection | External thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter primary connection | 1 inch (25) |
| With valves on primary connection | Yes |
| Medium temperature (continuous) [°C] | 90 - 100 |
| Primary pressure difference [kPa] | 0 - 100 |
| Max. operating pressure [bar] | 0 |
| With mixing valve | No |
| Expandable | Yes |
| Max. number of expansion groups | 2 |
| Multi-zone manifold | Yes |
| With temperature limit | No |
| With non-return valve | No |
| With circulation pump | No |
| Type of pump (system pump) | DC |
| Article compression class | PN 10 |
| With controller | No |
| Hydraulic balance control | None |
| Volume flow measurement | None |
| With thermometer | Yes |
| Temperature measurement supply | Analogue |
| Temperature measurement return | Analogue |
| Supply voltage [V] | 230 |
| Frequency [Hz] | 50 |
| Power consumption in operation [W] | 10 |
| With de-aeration | Yes |
| With pressure gauge | No |
| With filling/drain tap | Yes |
| Number of groups secondary | 2 - 12 |
| Secondary connection | Euroconus |
| Nominal diameter secondary connection | 3/4 inch (20) |
| Outer pipe diameter secondary [mm] | 10 - 25 |
| Closable groups | Yes |
| With flow-through indicator | Yes |
| Flow-through capacity [l/h] | 0 - 360 |
| With thermal actuator | No |
| Min. pressure difference secondary flow/return [kPa] | 2 |
| With wall-mounting bracket | Yes |
| Width [mm] | 203 - 703 |
| With casing | No |
| Weight [kg] | 3.583 - 9.058 |
