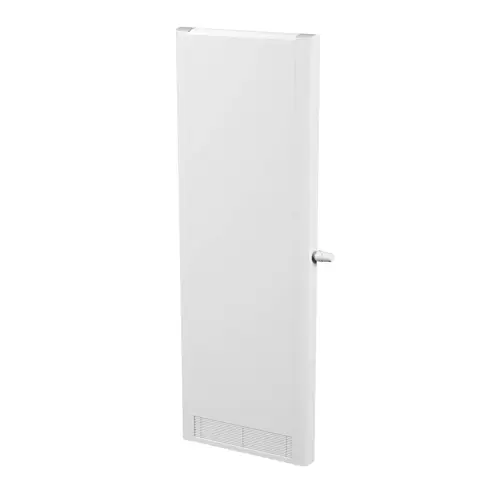

LST Vertical
Myson LST Vertical is the slimmest LST radiator on the market
- Slimmest panel LST on the market
- Complies with NHS Estates Guidance Notes 1998
- Surface temperature remains below 43°C
- Anti-bacterial paint
- 10-year warranty
Product description
Myson LST is the UK’s most comprehensive and popular range of LST radiators. Myson LST Vertical is perfect for areas with limited wall space and is compliant with NHS Estates Guidance Notes 1998. It comes with anti-bacterial paint, making it ideal for hospital and care home applications. The Myson LST range is also suitable for schools, student accommodation and other social housing projects as the surface temperature remains below 43°C and comes with safety conscious round steel casing, which eliminates sharp edges and ensures pipe work is concealed. Horizontal model also available.
Technical Specifications
| ETIM Class | EC011022 - Panel radiator |
|---|---|
| Material | Steel |
| Type | 22 |
| Surface structure front side panel | Flat smooth |
| Water-bearing front panel | No |
| Suitable for damp space | No |
| Height [mm] | 1772 - 2072 |
| Length [mm] | 420 - 870 |
| Depth [mm] | 157 |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 1.013 - 900 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 1.342 - 895 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 456 - 1266 |
| Heat emission according to EN 442 laboratory | Yes |
| N-exponent | 1.3452 - 1.3581 |
| Max. operating pressure [bar] | 6 - 8 |
| Water content [l] | 6 - 16 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Welded-on strips | Yes |
| With side lining | Yes |
| With top cladding | Yes |
| Collapsible | No |
| Number of standard connections | 4 |
| Connection 2, left side low | Inlet/outlet flow |
| Connection 7, right side low | Inlet/outlet flow |
| Thread size (inch) | 1/2 inch |
| Thread connection | Internal thread |
| With single-point connection | No |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | No |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With wall brackets | Yes |
| Suitable for electrical element | No |
| With electrical element | No |
| With blind stops | No |
| With mounting material | Yes |
| With towel holder | No |
| Recessed towel holder | No |
| Watt Per Meter [W/m] | 0 |
| Factor K | 3.996 - 11.593 |
| Watt Absolute [W] | 811 - 2237 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 1383 - 3839 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 2768 - 7633 |
| Max. Operating Temperature [°C] | 110 |
| Mounting Direction | Vertical |
| Number of wall brackets | 2 |
| Weight [kg] | 55.26 - 105.87 |
