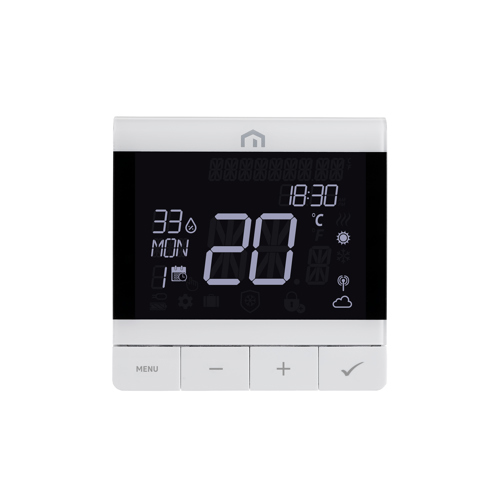

Unisenza Plus Thermostat 230V
Unisenza Plus wired thermostat for heating and hot water control.
- Works with Amazon Alexa and Google Home
- Standard flush-mounted box
- Operates as a connected or non-connected thermostat
- Geolocation for flexible temperature management
- Extended 5-year warranty
Product description
The Myson Unisenza Plus room thermostats 230V and 24V are wired ZigBee 3.0 room thermostats that are ideal for hydraulic surface heating and cooling systems. It has a relay for a load-dependent cable connection to the Unisenza Plus safety edge and for controlling the electrothermal actuators. It communicates with the Unisenza Plus Gateway via a ZigBee 3.0 protocol to allow remote access via a mobile Android or IoS APP. It also has a multifunctional input for connecting additional accessories to further optimize the application possibilities.
Technical Specifications
| ETIM Class | EC003263 - Smart thermostat |
|---|---|
| Regulation type on/off | Yes / No |
| Regulation type modulating | Yes / No |
| Communications protocol | Brand-dependent |
| Type of power supply | 24 V - 230 V |
| Connection | 3-wire |
| With receiver | No |
| Measuring range [°C] | 5 - 30 |
| External sensor | No |
| With thermal feedback | No |
| Control characteristic | PI |
| Adaptive (self-learning) | Yes |
| Suitable for heating | Yes |
| Number of heater outputs | 1 |
| Suitable for cooling | Yes |
| Number of cooler outputs | 1 |
| Ventilation | No |
| Differential value [K] | 0.5 - 1 |
| Adjustable differential | No |
| Sensor/feeler type | Resistance sensor |
| Temperature readable | Yes |
| With display | Yes |
| Type of clock | Year clock |
| Clock model | Digital |
| Overtime switch | Yes |
| Optimisation | Yes |
| With tap water circuit | No |
| Operation | Button |
| Suitable for floor heating control | Yes |
| Suitable for district heating control | Yes |
| Remote operation possible | Yes |
| IFTTT support available | Yes |
| With presence perception | No |
| Weather-dependent control system | No |
| Number of switching programmes | 1 |
| Contact type | Change-over contact (NO/NC) |
| Max. contact voltage [V] | 24 |
| Max. contact load [A] | 3 |
| Degree of protection (IP) | IP30 |
| Colour | White |
| RAL-number | 9016 |
| Width [mm] | 90 |
| Depth [mm] | 85 |
| Height [mm] | 75 |
| Class of the temperature control | II |
| Standby power consumption (solstandby) [W] | 3 |
| Weight [kg] | 0.15 |
