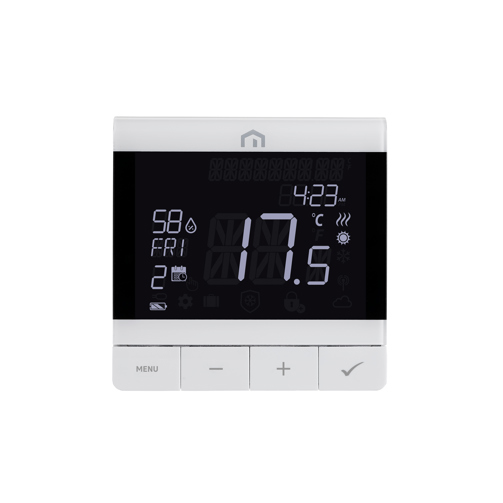

Unisenza Plus Programmable Thermostat RF
Unisenza Plus Programmable Thermostat operates wirelessly.
- Wireless connection with wiring centre
- Built-in humidity sensor
- Built-in rechargeable Li-Ion battery
- Geolocation for flexible temperature control
- Extended 5-year warranty
Product description
The Unisenza Plus UFH Thermostat RF is a Room Thermostats battery powered with Zigbee 3.0 ideally for an underfloor hydronic radiant heating/cooling system. It is used for wireless control of the wiring center which works with boiler, pump and actuators for different zones.
Technical Specifications
| ETIM Class | EC003263 - Smart thermostat |
|---|---|
| Regulation type on/off | No |
| Regulation type modulating | Yes |
| Communications protocol | Brand-dependent |
| Type of power supply | Battery |
| Connection | Wireless |
| With receiver | No |
| Measuring range [°C] | 5 - 30 |
| External sensor | No |
| With thermal feedback | No |
| Control characteristic | PI |
| Adaptive (self-learning) | Yes |
| Suitable for heating | Yes |
| Number of heater outputs | 1 |
| Suitable for cooling | Yes |
| Number of cooler outputs | 1 |
| Ventilation | No |
| Differential value [K] | 0.5 - 1 |
| Adjustable differential | No |
| Sensor/feeler type | Resistance sensor |
| Temperature readable | Yes |
| With display | Yes |
| Type of clock | Year clock |
| Clock model | Digital |
| Overtime switch | Yes |
| Optimisation | Yes |
| With tap water circuit | No |
| Operation | Button |
| Suitable for floor heating control | Yes |
| Suitable for district heating control | Yes |
| Remote operation possible | Yes |
| IFTTT support available | Yes |
| With presence perception | No |
| Weather-dependent control system | No |
| Number of switching programmes | 1 |
| Contact type | Change-over contact (NO/NC) |
| Max. contact voltage [V] | 24 |
| Max. contact load [A] | 3 |
| Degree of protection (IP) | IP30 |
| Colour | White |
| RAL-number | 9016 |
| Width [mm] | 90 |
| Depth [mm] | 85 |
| Height [mm] | 11 |
| Class of the temperature control | II |
| Standby power consumption (solstandby) [W] | 3 |
| Weight [kg] | 0.15 |
