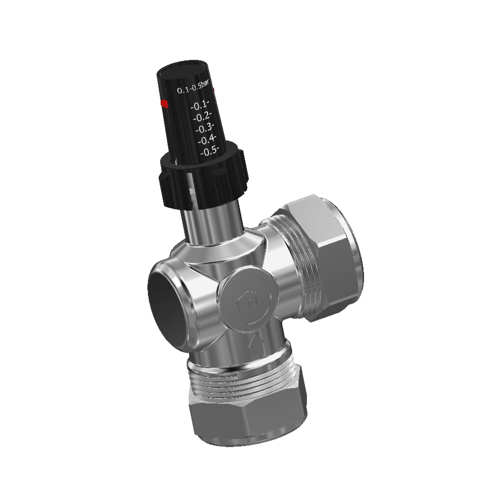

Auto Bypass Valves
Myson Automatic Bypass Valves reduce system noise & increase efficiency
- Increases system efficiency
- Reduces system noise
- High-quality finish
- Angled or straight version available
- Ideal for various installations
Product description
Myson offers a selection of Automatic Bypass Valves (ABVs). Designed for use in domestic central heating systems, their purpose is to maintain constant pump pressure and flow rate within the system. ABVs also reduce system noise and increase efficiency.
Myson Auto Bypass Valves are finished in nickel and available in both angled and straight variations. ABVs are perfect for any project, whether it’s new-build, self-build, social housing or commercial projects.
We have the optimum product to complement the Myson heat emitter range, and we can provide dedicated support for the commercial and specification market, in areas such as hotels, schools, hospitals and a variety of other commercial installations.
Technical Specifications
| ETIM Class | EC011490 - Pressure difference overflow controller |
|---|---|
| Housing material | Brass |
| Nominal diameter | 3/4 inch (20) |
| Outer pipe diameter all connections [mm] | 22 |
| Connection 1 | Compression ring |
| With coupling connection 1 | Yes |
| Connection 2 | Compression ring |
| With coupling connection 2 | Yes |
| Surface protection | Chromium-plated |
| Max. operating pressure at 20 °C [kPa] | 1000 |
| Medium temperature (continuous) [°C] | 0 - 120 |
| With impulse pipe | No |
| Height [mm] | 900 |
| Weight [kg] | 0.2225 - 0.26 |
