Drain Off Tail

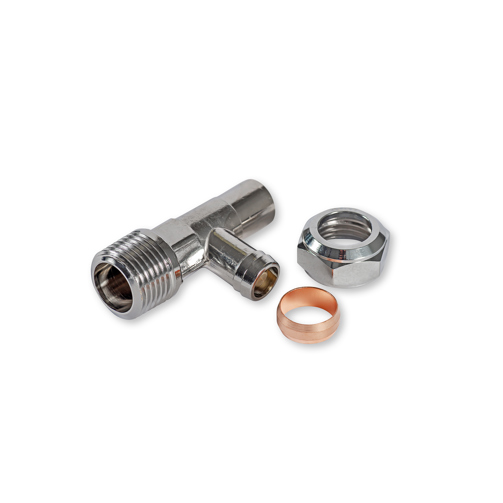

Myson Drain Off Tail
- Chrome finish
- Efficient drainage
- Easy integration
- Versatile usage
- Reliable operation
Product description
Myson drain off tail is for use in combination with radiator valves, to drain off either an individual radiator or a full system. Suitable for MatchMate and MatchMaster radiator valves.
Technical Specifications
| ETIM Class | EC003024 - Fitting with 2 connections |
|---|---|
| Material connection 1 | Brass |
| Surface protection connection 1 | Chromium-plated |
| Surface treatment connection 1 | Pickled |
| Material connection 2 | Brass |
| Surface protection connection 2 | Chromium-plated |
| Surface treatment connection 2 | Pickled |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System-specific | Yes |
| Nominal diameter connection 1 | 1/2 inch (15) |
| Connection 1 | External thread metric |
| Nominal diameter connection 2 | 1/2 inch (15) |
| Outer pipe diameter connection 2 [mm] | 15 |
| Connection 2 | Compression ring |
| With buffer stud | No |
| Length [mm] | 3800 |
| Max. operating pressure at 20 °C [bar] | 10 |
| Max. operating pressure at max. medium temperature [bar] | 10 |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | Yes |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
| Type approval according to BBR/EKS | No |
| Height [mm] | 646 |
| Depth [mm] | 11 |
| Weight [kg] | 0.066 |
