Electric Underfloor
Myson Electric underfloor heating is a one box, easy-fit solution
- One-box solution
- Ideal for self-builds
- Suitable for limited space
- Easy to install
- Flexible flooring options
Specifications
| ETIM Class : | EC000405 - Electric surface heating |
|---|---|
| Model : | Heating cable |
| With support mat : | Yes |
| Self-adhesive : | No |
| Connection voltage [V]: | 195 - 253 |
| Connected load [W]: | 889.2 - 1153.68, 762.45 - 989.23, 635.7 - 824.78, 571.35 - 741.29, 444.6 - 576.84, 380.25 - 493.35, 317.85 - 412.39, 253.5 - 328.9, 189.15 - 245.41, 1271.4 - 1649.56, 126.75 - 164.45, 1144.65 - 1485.11, 1017.9 - 1320.66 |
| Power [W/m²]: | 150 |
| Resistance [Ohm]: | 35 - 353 |
| Suitable for damp space : | Yes |
| Suitable as outdoor surface heating : | No |

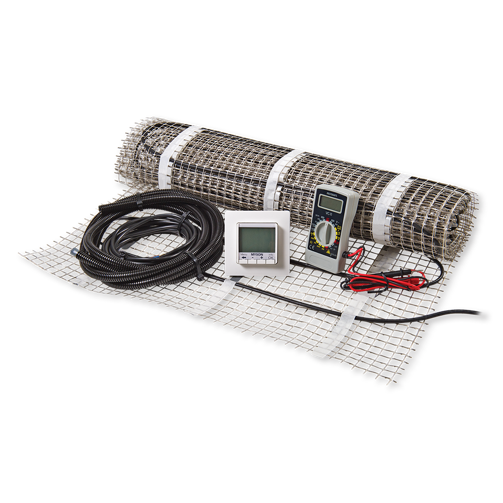

Myson Electric Underfloor is a single box underfloor heating solution. It contains an electric mat, digital clock thermostat, control card, floor sensor, sensor tube, multimeter and installation manual.
Electric heating has grown in popularity rapidly in recent years, offering benefits that cannot be provided by conventional heating. Myson electric underfloor heating is a great alternative for small areas where hydronic underfloor heating is not suitable, for example, kitchens, bathrooms, and conservatories. It is ideal for self-builds, renovations and extensions, and is extremely easy to install without the need for specialist tools, skills or groundwork. It comes in a range of sizes from, 1sqm -10sqm, and can be installed under tile, stone or wood* flooring.
*check with manufacturer
