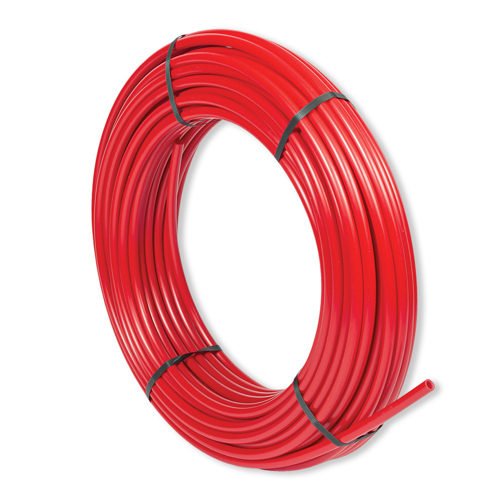

Pexcellent Pipe
Pexellent is a 5-layer polyethylene pipe with integral oxygen barrier.
- Integral oxygen barrier
- Compatible with most Floortec systems
- No chemical additives
- High-quality German engineering
- Multiple diameter options
Product description
Myson has been manufacturing underfloor heating pipe since 1974. Manufactured in Germany, it combines all the advantages of precision German engineering with Myson's own unrivalled expertise in the field of heating.
Myson Floortec PEXCellent5 underfloor heating pipe is a polyethylene pipe with 5 layers, which includes an integral oxygen barrier. It is available in 12mm, 17mm and 20mm diameters and is compatible with most Myson Floortec heating systems, including Myson Floortec Microboard low-profile heating system. It is environmentally friendly and is produced with no chemical additives in either the production or disposal processes.
Technical Specifications
| ETIM Class | EC010225 - Multi-layered pipe, smooth |
|---|---|
| Material inner layer | Plastic |
| Quality class inner layer | PE-Xc |
| Material intermediate layer | Plastic |
| Quality class intermediate layer | Ethylene vinyl alcohol (EVOH) |
| Material outer layer | Plastic |
| Quality class outer layer | PEHD-Xc |
| Number of layers | 5 |
| Glass-fibre reinforced | No |
| Diffusion-proof | Yes |
| Connection 1 | Tube end |
| Insert length connection 1 [mm] | 10 - 20 |
| Outer pipe diameter [mm] | 10 - 20 |
| Wall thickness [mm] | 1.25 - 2 |
| System-specific | Yes |
| Medium temperature (continuous) [°C] | - 70 |
| Max. medium temperature (momentarily) [°C] | 90 |
| Max. operating pressure at 20 °C [bar] | 8 - 10 |
| Max. operating pressure at max. medium temperature [bar] | 8 - 10 |
| Wall roughness [mm] | 0.0015 |
| Expansion coefficient [mm/(m.K)] | 0.15 |
| Flexible | Yes |
| Suitable for surface mounting | No |
| Min. bending radius [mm] | 50 - 100 |
| Min. bending radius without tools [mm] | 50 - 100 |
| Pipe colour | Red |
| With mantle pipe | No |
| With heating cable | No |
| With thermal insulation | No |
| UV resistant | No |
| SVGW certified | No |
| Capped | No |
| Water content [l/m] | 0.044 - 0.2 |
| Halogen free | Yes |
| Hook-and-loop fastening | No |
| Certified according to SVGW for water | No |
| Certified according to SVGW for gas | No |
| DIN-CERTCO certificate | Yes |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Compliant with NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Type approval according to BBR/EKS | No |
| CO2/Kg equivalent per kg of material | 9.3492 - 126.525 |
| Weight [kg] | 4.452 - 60.25 |
