MEP
Myson MEPs offer a range of single, dual & triple channel programmers
- Easy to use
- Flexible operation settings
- Automatic time adjustments
- Memory feature
- Energy-efficient
Product description

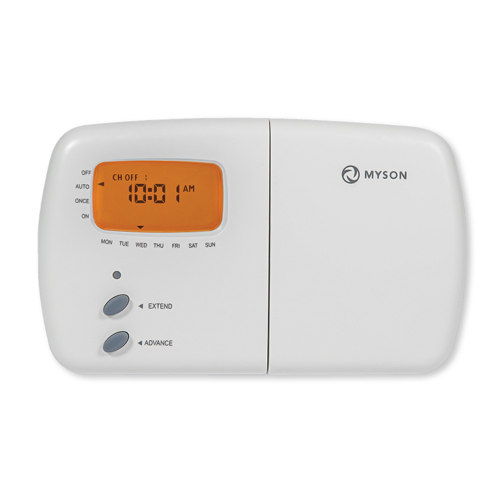

Myson MEPs offer a range of single, dual and triple channel programmers which enable energy efficient control of your heating system. All our MEP programmers comply with the industry standard back plate and have a unique front fixing.
MEP1c is a single channel programmer for use with combi boilers, as a domestic hot water control or with electric radiators when using a programmable thermostat for the central heating circuit.
MEP2c is a dual channel programmer for use with a central heating system and a domestic hot water control.
MEP3c is a three-channel programmer, designed for installations where there is a need for two heating zones and a hot water circuit.
MEPTWOZONE is a dual channel programmer for use within a central heating system to control two heating zones.
Technical Specifications
| ETIM Class | EC011309 - Room clock thermostat |
|---|---|
| Regulation type on/off | Yes |
| Regulation type modulating | No |
| Communications protocol | Other |
| Type of power supply | 230 V |
| Connection | 3-/4-wire |
| With receiver | No |
| External sensor | No |
| With thermal feedback | No |
| Control characteristic | Other |
| Suitable for heating | Yes |
| Suitable for heating | Yes |
| Number of heater outputs | 1 - 4 |
| Suitable for cooling | No |
| Adjustable differential | No |
| Selector switch for heating and heating with hot water | Yes / No |
| Sensor/feeler type | Other |
| Temperature readable | No |
| Relative humidity (RH) readable | No |
| With display | Yes |
| Type of clock | Week clock |
| Clock model | Digital |
| Overtime switch | No |
| Optimisation | No |
| With tap water circuit | Yes / No |
| Operation | Button - Touch screen |
| Weather-dependent control system | No |
| Number of switching programmes | 3 |
| Max. contact voltage [V] | 230 |
| Max. contact load [A] | 2 |
| Degree of protection (IP) | IP30 |
| Explosion-proof | No |
| Colour | White |
| Width [mm] | 140 |
| Depth [mm] | 30 |
| Height [mm] | 30 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Weight [kg] | 0.287 - 0.3548 |
