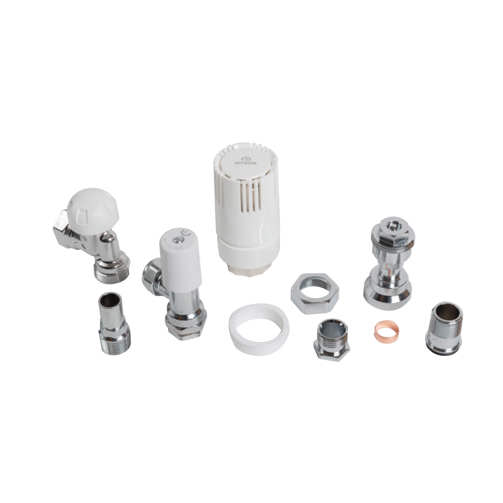

LST TRV Kits
Myson TRV kits ensure maximum efficiency of our LST radiators
- A-rated TRV.
- Enhanced efficiency.
- Security feature.
- Precision control.
- Multiple connections.
Product description
Myson LST TRV kits are designed to maximise the effectiveness of Myson Low Surface Temperature radiators. We offer two designs, the Universal Close Coupled Kit which allows the case to be removed for cleaning without removing the TRV head, and the competitively priced Direct Fit Kit. Both kits come with our A-rated TRV and are expertly designed for precision control. The kits allow the thermal sensing head of a Myson Thermostatic Radiator Valve to be mounted directly onto the LST enclosure of a Myson Low Surface Temperature radiator. They also feature a locking facility that prevents unauthorised adjustment in public areas.
Technical Specifications
| ETIM Class | EC010064 - Thermostatic control head for valve |
|---|---|
| Thermostatic adjustment element connection | Other |
| Connection to valve | M30 x 1.5 |
| Housing material | Brass |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Surface protection | Chromium-plated |
| Model | Straight |
| Size of radiator connection | 1/2 inch (15) |
| Suitable for radiator | Yes |
| Size of pipe connection | 1/2 inch (15) |
| Vandal proof | No |
| Thermostatic adjustment element connection | External thread |
| With anti-theft security | No |
| Size of thermostatic adjustment element connection | M30 x 1.5 |
| Suitable for heating | Yes |
| Shape | Straight - Right-angled |
| Suitable for cooling | No |
| Adjustment element | Wax-filled |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| Adjustment range [°C] | 8 - 28 |
| With bent tailpiece | No |
| Water temperature influence [K] | 0.55 |
| With compression set | Yes |
| Hysteresis [K] | 0.3 |
| Pipe diameter compression set [mm] | 15 |
| Blocking/limiting adjustment range | Yes |
| Can be preset | No |
| With zero (off) position | Yes |
| Presetting | None |
| Mechanically lockable at zero (off) position | Yes |
| Operation | Thermostatic without button |
| Frost protected | Yes |
| Suitable for single pipe system | No |
| Response time [s] | 1500 |
| Suitable for two pipe system | Yes |
| Operation by Bluetooth | No |
| Thermostatically prepared | Yes |
| Operation by app | No |
| Reverse direction of flow | No |
| With web interface | No |
| Programme clock | No |
| With dust cap | No |
| Colour | White |
| RAL-number | 9016 |
| Adjustment aid for visually impaired people | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 900 |
| Pressure independent | No |
| Height [mm] | 646 |
| Width / Length [mm] | 1800 - 3200 |
| Depth [mm] | 11 - 154 |
| Differential Pressure Influence [K] | 60 |
| Weight [kg] | 0.037 - 1.034 |
