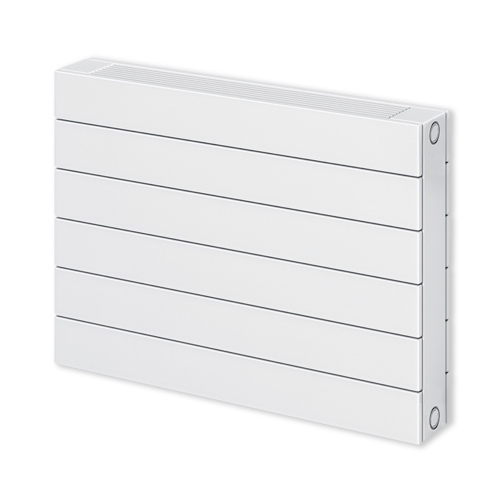

Décor Compact
Myson Décor Compact offers a wide choice of sizes and tube designs
- Stylish looks
- High heat output
- Low temperature compatibility
- Available in various colours
- Electric model available
Product description
The Myson Décor Compact plays a leading role in the world of interior design through treating radiators as decorative items, as well as heating devices. With a range of sizes and tube designs available, the Myson Décor range offers a variety of choice when it comes to choosing the right products for a project. Décor Compact is available in horizontal, vertical and plinth model options, and has become a much loved alternative to traditional mainstream radiators.
Technical Specifications
| ETIM Class | EC011023 - Tube radiator |
|---|---|
| Material | Steel |
| Material quality | Other |
| Number of tubes | 6 - 8 |
| Height [mm] | 430 - 574 |
| Length [mm] | 600 - 2000 |
| Depth [mm] | 68 - 93 |
| Depth from wall to front side [mm] | 93 - 140 - 68 - 94 |
| Shape of radiation tube | Rectangular |
| Shape of collector | Oval |
| Installation | Vertical |
| Radiant tube | Horizontal |
| Radiator design | Straight |
| Towel radiator model | No |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 1.106 - 948 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 1.064 - 955 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 267 - 1043 |
| N-exponent | 1.3031 - 1.3722 |
| Max. operating pressure [bar] | 5 |
| Water content [l] | 2 - 18 |
| With fan heater | No |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Surface protection | Lacquered |
| Suitable for damp space | Yes |
| With towel holder | No |
| With mirror | No |
| Mounting method | On wall |
| With side lining | No |
| With top cladding | No |
| Swivelling | No |
| Applicable with hot tap water circuit | No |
| Number of standard connections | 4 |
| Connection 2, left side low | Inlet/outlet flow |
| Connection 3, left side top | Inlet/outlet flow |
| Connection 6, right side top | Inlet/outlet flow |
| Connection 7, right side low | Inlet/outlet flow |
| Thread size (inch) | 1/2 inch |
| With single-point connection | No |
| Thread connection | Internal thread |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With consoles | Yes |
| Suitable for electrical element | No |
| With blind stops | Yes |
| With mounting material | Yes |
| Watt Per Meter [W/m] | 760 - 1592 |
| Factor K | 2.786 - 14.847 |
| Watt Absolute [W] | 0 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 802 - 5391 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 1556 - 10864 |
| Max. Operating Temperature [°C] | 110 |
| Variant | KH11 - KH22 |
| Mounting Direction | Horizontal |
| Number of wall brackets | 4 - 6 |
| Weight [kg] | 11.91 - 98.02 |
