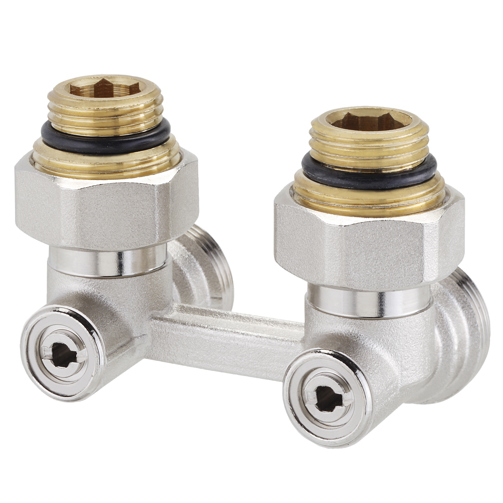

Twin Entry Valves
Myson Twin Entry Valves for central connection include a nut & olive
- Suitable for central connection
- Straight or angled
- Reversible flow
- Nut & olive included
- Easy installation
Product description
Central connection allows for any size radiator to be installed once pipes have been placed, and it provides the most effective water distribution method. Myson Twin Entry Valves for central connection are supplied with a nut & olive included. Options available include straight or angled and twin entry reversible flow.
Technical Specifications
| ETIM Class | EC010077 - Bottom H-block |
|---|---|
| Material | Brass |
| Size of radiator connection | 3/4 inch external thread |
| Size of pipe connection | 3/4 inch Euroconus |
| Connection direction towards floor (straight) | No |
| Connection direction towards wall (square) | Yes |
| Suitable for two pipe system | Yes |
| Suitable for single pipe system | No |
| Surface protection | Nickel-plated |
| Lockable | No |
| Adjustable | No |
| Self-controlling | No |
| Thermostatically prepared | No |
| Suitable for filling/drain tap | No |
| Four-way supply/return connection | No |
| Centre distance, supply/return [mm] | 50 |
| Length [mm] | 80 |
| Offset [mm] | 0 |
| Height [mm] | 43.5 |
| Depth [mm] | 39.7 |
| Weight [kg] | 0.27 - 0.275 |
