Fatala

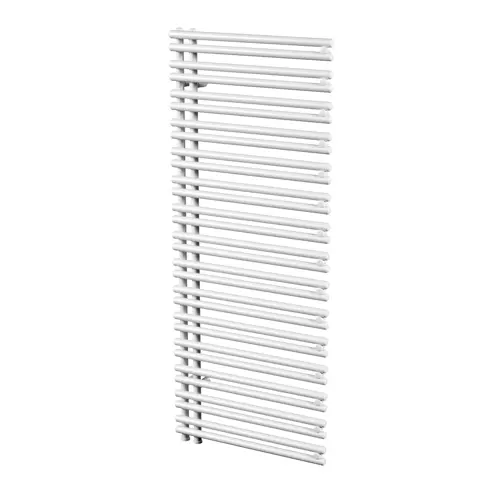

Myson Fatala Modern Assymetric Towel Radiator
- Asymmetric design
- Ample room for towels
- Various colour options
- Special finishes
- Hydronic system compatibility
Product description
Introduce contemporary elegance into your home with a Myson Fatala Towel Radiator. Its attractive yet simple assymetric design is both stylish and practical, and will add a fresh modern look to any bathroom or living room. Suitable for hydronic heating systems.
Technical Specifications
| ETIM Class | EC011023 - Tube radiator |
|---|---|
| Material | Steel |
| Material quality | Other |
| Number of tubes | 20 - 44 |
| Height [mm] | 796 - 1756 |
| Length [mm] | 500 |
| Depth [mm] | 87 |
| Depth from wall to front side [mm] | 97 - 109 |
| Shape of radiation tube | Round |
| Shape of collector | Round |
| Installation | Vertical |
| Radiant tube | Horizontal |
| Radiator design | Straight |
| Towel radiator model | Yes |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 243 - 476 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 446 - 897 |
| N-exponent | 1.1885 - 1.2414 |
| Max. operating pressure [bar] | 0.01 |
| Water content [l] | 3.8 - 8 |
| With fan heater | No |
| Max. input power heating [W] | 300 - 600 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Surface protection | Lacquered |
| Suitable for damp space | Yes |
| With towel holder | No |
| With mirror | No |
| Mounting method | On wall |
| With side lining | No |
| With top cladding | No |
| Swivelling | No |
| Applicable with hot tap water circuit | No |
| Number of standard connections | 2 |
| Connection TC, top center | Double connection, inlet-outlet |
| Thread size (inch) | 1/2 inch |
| With single-point connection | No |
| Thread connection | Internal thread |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With consoles | Yes |
| With blind stops | Yes |
| With mounting material | Yes |
| Factor K | 4.267 - 6.977 |
| Watt Absolute [W] | 446 - 897 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 829 - 1624 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 1522 - 3061 |
| Max. Operating Temperature [°C] | 110 |
| Variant | Straight |
| Mounting Direction | Vertical |
| Number of wall brackets | 4 |
| Weight [kg] | 8.9 - 19.5 |
