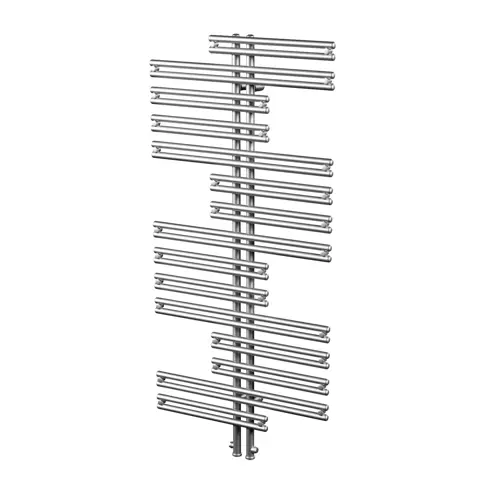

Kasai
Unique and modern towel radiator design.
- Stylish, eye-catching design.
- Textured, metallic and shimmer finishes.
- Ample room for warming and drying towels.
- Dual fuel kit available.
- Versatile design.
Product description
Kasai demands attention with its unique, offset tube design and modern flair. Available in varied RAL or metallic finishes, it is a versatile addition to any bathroom or living space. The offset heating tubes enhance the drying of textiles and towels. Suitable for hydronic systems and dual fuel options available.
Technical Specifications
| Material | Steel |
|---|---|
| Material quality | Other |
| Number of tubes | 30 - 36 |
| Height [EU570448] | 1262 - 1500 |
| Length [EU570448] | 600 |
| Depth [EU570448] | 87 |
| Shape of radiation tube | Round |
| Shape of collector | Round |
| Installation | Vertical |
| Radiant tube | Horizontal |
| Radiator design | Straight |
| Towel radiator model | Yes |
| Heat emission according to EN 442 20 °C - 55/45 [EU570054] | 323 - 383 |
| Heat emission according to EN 442 20 °C - 75/65 [EU570054] | 613 - 724 |
| Heat emission according to EN 442 20 °C - 70/40 [EU570054] | 361 - 427 |
| N-exponent | 1.2468 - 1.253 |
| Max. operating pressure [EU570056] | 10 |
| Water content [EU570403] | 5.3 - 6.1 |
| With fan heater | No |
| Max. input power heating [EU570054] | 300 - 600 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Surface protection | Lacquered |
| Suitable for damp space | Yes |
| Suitable for towel holder | Yes |
| With towel holder | No |
| With mirror | No |
| Mounting method | On wall |
| With side lining | No |
| With top cladding | No |
| Swivelling | No |
| Applicable with hot tap water circuit | No |
| Number of standard connections | 2 |
| Connection 2, left side low | Inlet flow |
| Connection 7, right side low | Outlet flow |
| Connection BC, bottom center | Double connection, inlet-outlet |
| Thread size (inch) | 1/2 inch |
| With single-point connection | No |
| Thread connection | Internal thread |
| With connection block | No |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With thermostat button | No |
| With consoles | Yes |
| Suitable for electrical element | Yes |
| With blind stops | Yes |
| With mounting material | Yes |
| Suitable for shelf | Yes |
| With shelf | No |
| Factor K | 4.557 - 5.514 |
| Watt Absolute [EU570054] | 613 - 724 |
| Heat emission according to EN 442 20 °C - 45/30 [EU570054] | 151 - 180 |
| Heat emission according to EN 442 20 °C - 45/35 [EU570054] | 189 - 225 |
| Heat emission according to EN 442 20 °C - 50/30 [EU570054] | 173 - 205 |
| Heat emission according to EN 442 20 °C - 55/30 [EU570054] | 194 - 230 |
| Heat emission according to EN 442 20 °C - 55/35 [EU570054] | 239 - 284 |
| Heat emission according to EN 442 20 °C - 60/30 [EU570054] | 215 - 255 |
| Heat emission according to EN 442 20 °C - 60/40 [EU570054] | 308 - 365 |
| Heat emission according to EN 442 20 °C - 60/45 [EU570054] | 349 - 414 |
| Heat emission according to EN 442 20 °C - 65/45 [EU570054] | 379 - 448 |
| Heat emission according to EN 442 20 °C - 80/60 [EU570054] | 603 - 712 |
| Heat emission according to EN 442 20 °C - 90/70 [EU570054] | 770 - 909 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 1102 - 1307 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 2092 - 2470 |
| Heat emission according to EN 442 24 °C - 45/30 [EU570054] | 102 - 122 |
| Heat emission according to EN 442 24 °C - 45/35 [EU570054] | 141 - 168 |
| Heat emission according to EN 442 24 °C - 50/30 [EU570054] | 120 - 143 |
| Heat emission according to EN 442 24 °C - 55/30 [EU570054] | 138 - 164 |
| Heat emission according to EN 442 24 °C - 55/35 [EU570054] | 186 - 221 |
| Heat emission according to EN 442 24 °C - 55/45 [EU570054] | 266 - 315 |
| Heat emission according to EN 442 24 °C - 60/30 [EU570054] | 156 - 185 |
| Heat emission according to EN 442 24 °C - 60/40 [EU570054] | 253 - 300 |
| Heat emission according to EN 442 24 °C - 60/45 [EU570054] | 294 - 349 |
| Heat emission according to EN 442 24 °C - 65/45 [EU570054] | 322 - 381 |
| Heat emission according to EN 442 24 °C - 80/60 [EU570054] | 541 - 640 |
| Heat emission according to EN 442 24 °C - 90/70 [EU570054] | 697 - 823 |
| Max. Operating Temperature [EU570073] | 110 |
| Variant | A0 |
| Mounting Direction | Vertical |
| Number of wall brackets | 4 |
| Number of floor brackets | 0 |
| Weight [EU570039] | 13.3 - 16 |
