Select Compact

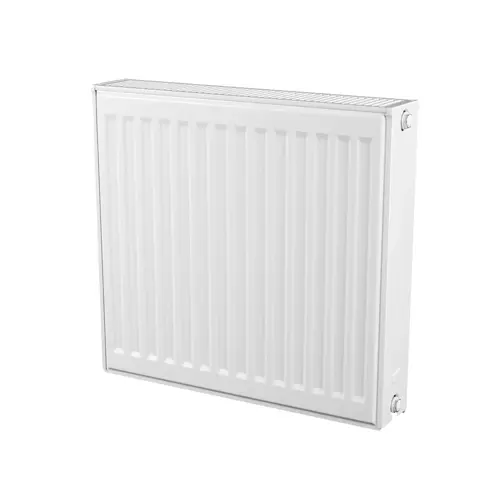

Myson Select Compact is a prime traditional panel radiator
- High heat output
- Lightweight
- 4-tap connections
- Top grille & side panels standard
- Eco-friendly
Product description
Myson Select Compact is the ultimate in radiator design. It uses a 33mm pitch which our years of manufacturing expertise and research have established to be the optimum design for a Compact radiator. The Select Compact delivers impressive outputs whilst using a low water temperature, and is available in four types; single convector, double convector, double panel extra, and triple convector, all with factory fitted top grille and side panels as standard. It is lightweight and uses less steel for a lower carbon footprint.
Technical Specifications
| ETIM Class | EC011022 - Panel radiator |
|---|---|
| Material | Steel |
| Type | 11 - 21 - 22 - 33 |
| Surface structure front side panel | Profiled |
| Water-bearing front panel | Yes |
| Suitable for damp space | No |
| Height [mm] | 300 - 900 |
| Length [mm] | 400 - 2400 |
| Depth [mm] | 60 - 152 |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 0 - 989 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 1.018 - 995 |
| Heat emission according to EN 442 laboratory | Yes |
| N-exponent | 1.2803 - 1.36 |
| Max. operating pressure [bar] | 8 |
| Water content [l] | 0 - 29.4 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Welded-on strips | Yes |
| With side lining | Yes |
| With top cladding | Yes |
| Collapsible | No |
| Number of standard connections | 4 |
| Connection 2, left side low | Inlet/outlet flow |
| Connection 3, left side top | Inlet flow |
| Connection 6, right side top | Inlet flow |
| Connection 7, right side low | Inlet/outlet flow |
| Thread size (inch) | 1/2 inch |
| Thread connection | Internal thread |
| With single-point connection | No |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | Yes |
| With integrated thermostatic valve | No |
| With wall brackets | Yes |
| Suitable for electrical element | No |
| With electrical element | No |
| With blind stops | No |
| With mounting material | Yes |
| With towel holder | No |
| Recessed towel holder | No |
| Watt Per Meter [W/m] | 546 - 3260 |
| Factor K | 1.361 - 27.712 |
| Watt Absolute [W] | 0 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 386 - 9721 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 745 - 18120 |
| Max. Operating Temperature [°C] | 110 |
| Mounting Direction | Horizontal |
| Number of wall brackets | 2 - 3 |
| Weight [kg] | 3.51 - 132.5625 |
