Tyne

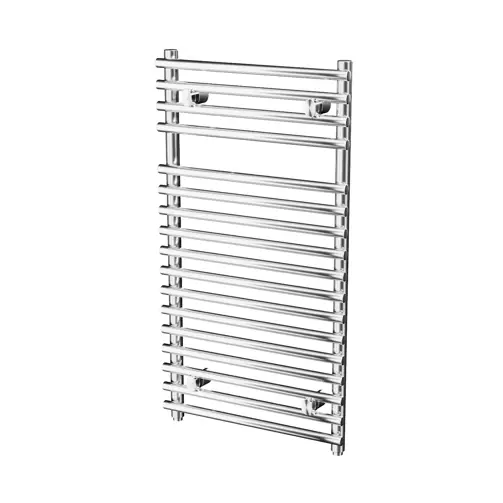

Myson Tyne Tube-on-Tube Ladder Rail
- Light, modern design
- High-quality chrome finish
- Dual fuel option available
- Efficient heating
- Easy installation
Product description
Myson Tyne is a classic tube-on-tube ladder effect bathroom radiator. Finished in chrome, Tyne is a light, modern design radiator that provides a discreet yet stylish presence in any bathroom. Suitable for hydronic heating systems, and dual fuel option available.
Technical Specifications
| ETIM Class | EC011023 - Tube radiator |
|---|---|
| Material | Steel |
| Material quality | Other |
| Number of tubes | 16 - 28 |
| Height [mm] | 770 - 1400 |
| Length [mm] | 600 |
| Depth [mm] | 85 |
| Depth from wall to front side [mm] | 85 - 110 |
| Shape of radiation tube | Round |
| Shape of collector | Round |
| Installation | Vertical |
| Radiant tube | Horizontal |
| Radiator design | Straight |
| Towel radiator model | Yes |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 170 - 288 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 0 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 284 - 339 |
| N-exponent | 1.2306 - 1.2529 |
| Max. operating pressure [bar] | 0 |
| Water content [l] | 4 - 7 |
| With fan heater | No |
| Max. input power heating [W] | 250 - 500 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Surface protection | Lacquered |
| Suitable for damp space | Yes |
| With towel holder | No |
| With mirror | No |
| Mounting method | On wall |
| With side lining | No |
| With top cladding | No |
| Swivelling | No |
| Applicable with hot tap water circuit | No |
| Number of standard connections | 2 |
| Connection 1, bottom left | Inlet/outlet flow |
| Connection 8, bottom right | Inlet/outlet flow |
| Thread size (inch) | 1/2 inch |
| With single-point connection | No |
| Thread connection | Internal thread |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With consoles | Yes |
| With blind stops | Yes |
| With mounting material | Yes |
| Factor K | 0 |
| Watt Absolute [W] | 318 - 547 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 580 - 983 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 1046 - 1995 |
| Max. Operating Temperature [°C] | 110 |
| Variant | Straight |
| Mounting Direction | Vertical |
| Number of wall brackets | 4 |
| Weight [kg] | 9.3 - 16.2 |
