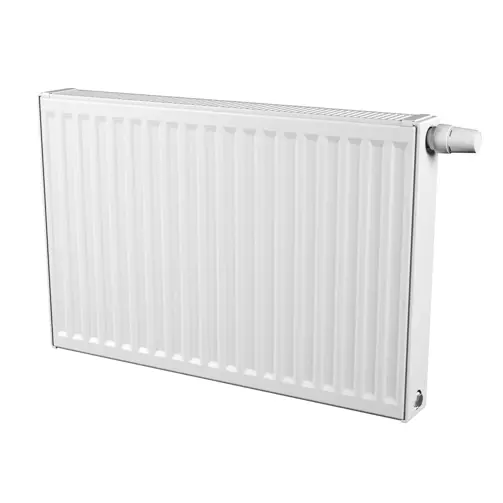

T6 Compact
Myson T6 Compact panel radiator guarantees balanced heating
- Patented T6 technology
- Easy to install
- Well-balanced heating
- Suitable for low temperature systems
- Top grille & side panels included
Product description
Myson T6 Compact panel radiators have a patented T distribution system which ensures balanced heating and the most effective water distribution, whilst a pioneering central connection allows for easy installation. The T6 Compact is fitted with top grille and side panels and offers the ultimate in design and installation flexibility.
Technical Specifications
| ETIM Class | EC011022 - Panel radiator |
|---|---|
| Material | Steel |
| Type | 11 - 21 - 22 |
| Surface structure front side panel | Profiled |
| Water-bearing front panel | Yes |
| Suitable for damp space | No |
| Height [mm] | 300 - 600 |
| Length [mm] | 400 - 2600 |
| Depth [mm] | 61 - 105 |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 1.035 - 999 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 1.012 - 991 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 160 - 2522 |
| Heat emission according to EN 442 laboratory | Yes |
| N-exponent | 1.3074 - 1.3527 |
| Max. operating pressure [bar] | 0.01 |
| Water content [l] | 1 - 18 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Welded-on strips | Yes |
| With side lining | Yes |
| With top cladding | Yes |
| Collapsible | No |
| Number of standard connections | 6 |
| Connection 2, left side low | Inlet/outlet flow |
| Connection 3, left side top | Inlet flow |
| Connection 6, right side top | Inlet flow |
| Connection 7, right side low | Inlet/outlet flow |
| Connection BC, bottom center | Double connection, inlet-outlet |
| Thread size (inch) | 1/2 inch |
| Thread connection | External thread |
| With single-point connection | No |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | Yes |
| With integrated thermostatic valve | Yes |
| With wall brackets | Yes |
| Suitable for electrical element | No |
| With electrical element | No |
| With blind stops | No |
| With mounting material | Yes |
| With towel holder | No |
| Recessed towel holder | No |
| Watt Per Meter [W/m] | 565 - 1713 |
| Factor K | 1.486 - 23.273 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 487 - 7653 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 966 - 15197 |
| Max. Operating Temperature [°C] | 110 |
| Mounting Direction | Horizontal |
| Number of wall brackets | 2 - 3 |
| CO2/Kg equivalent per kg of material | 2.73 |
| CO2/Kg equivalent per KW of heat delivered by the articles | 50.2 |
| Weight [kg] | 1.222 - 76.665 |
