Unisenza Dew Point Sensor
Myson's Unisenza Dew Point Sensor monitors humidity in cooling mode
- External dew point sensor
- Extended 5-year warranty
- Connects to Unisenza Wiring Centre
- Reliable performance
- Prevents condensation
Product description

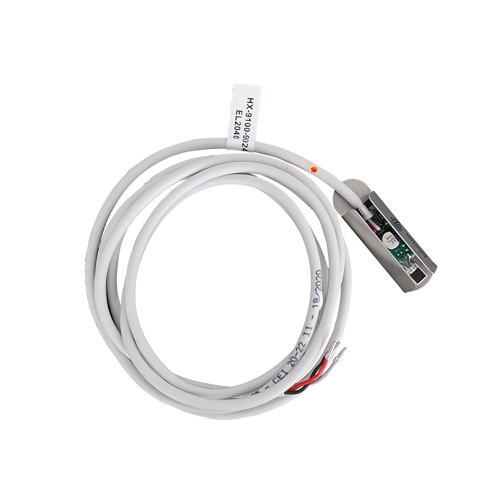

Myson's Unisenza Dew Point Sensor is an external contact dew point sensor for monitoring humidity in cooling mode. For connection to the Unisenza Wiring Centre. An extended warranty of 5 years applies to all Unisenza products.
Technical Specifications
| ETIM Class | EC004240 - Sensor (HVAC) |
|---|---|
| Scope of application | Room |
| With mounting material | No |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for duct mounting | Yes |
| Suitable for tube mounting | No |
| Suitable for air | Yes |
| Suitable for liquids | No |
| Suitable for gases | No |
| With housing | No |
| Cover attachment | Other |
| Sensor element inside housing | Yes |
| Sensor element outside housing | No |
| Fixed cable to sensor | Yes |
| Cable length [m] | 1.5 |
| Sensor length [mm] | 40 |
| Insert length [mm] | 40 |
| Diameter sensor element [mm] | 10 |
| Material element | Other |
| Technology | Capacitive polymer sensor |
| Active temperature measurement | No |
| Passive temperature measurement | No |
| Average temperature measuring | No |
| Number of measuring points | 1 |
| Measurement of CO2 | No |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | Yes |
| Particulate matter measurement (PM) | No |
| Dewpoint measuring range [%] | 75 - 85 |
| Offset setting possible | No |
| Trend representation | No |
| Error registration possible | No |
| Sensor type | Other |
| Tolerance [%] | 5 |
| Potentiometer with adjustment knob | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for MP (multi point) | No |
| Supporting protocol for KNX | No |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Standby push button | No |
| Wireless | No |
| With display | No |
| Type of power supply | Other |
| Type of electric connection | Screw connection |
| Rated supply voltage AC [V] | 24 - 24 |
| Rated supply voltage DC [V] | 24 - 24 |
| With reverse polarity protection | No |
| Max. ambient humidity (non-condensing) [%] | 100 |
| Ambient temperature [°C] | 5 - 80 |
| Explosion-proof | No |
| Degree of protection (IP) | IP22 |
| Housing height [mm] | 10 |
| Housing width [mm] | 40 |
| Housing depth [mm] | 10 |
| Housing colour | Grey |
| UV resistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
