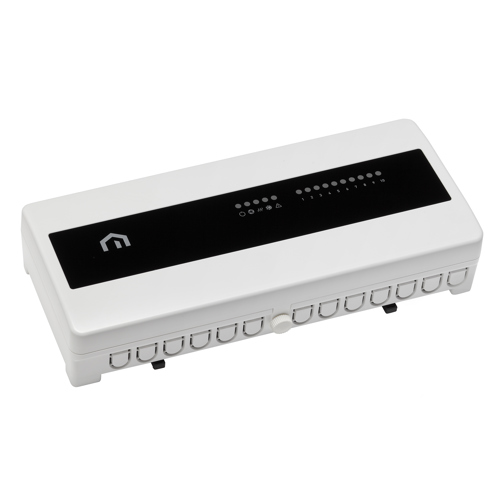

Unisenza Wiring Centre
Myson Unisenza Wiring Centre ensures safe and easy wiring
- Heating and cooling
- Integrated pump protection function
- Extended 5 year warranty
- LED status indicators
- Flexible mounting options
Specifications
| ETIM Class : | EC010057 - Zone controller |
|---|---|
| Supply voltage [V]: | 24 - 230 |
| Output voltage [V]: | 24 - 230 |
| Networkable via radiografic (standard) : | No |
| Networkable via radio (optional) : | No |
| Connection for external antenna : | No |
| Smart control : | No |
| Number of channels/zone : | 5 - 10 |
| Max. power per channel [VA]: | 0.5 - 1 |
| Suitable for heating : | Yes |
Myson's Unisenza Wiring Centre is at the heart of the control system and enables safe and easy wiring of Unisenza room thermostats and actuators. The easy-to-understand LED indicators provide a quick status reference, and changeover from heating to cooling is simple thanks to the external changeover input. An optional dew point and/or excess temperature sensor is available to protect the system from condensation when cooling, or excess temperature when heating.
Available in 2 versions, 230V and 24V. The standard 10-zone unit will fit most applications, but a 5-zone version is also available for smaller systems. Per 10-zone wiring centre up to 20 actuators can be installed so that larger systems pose no problem.
