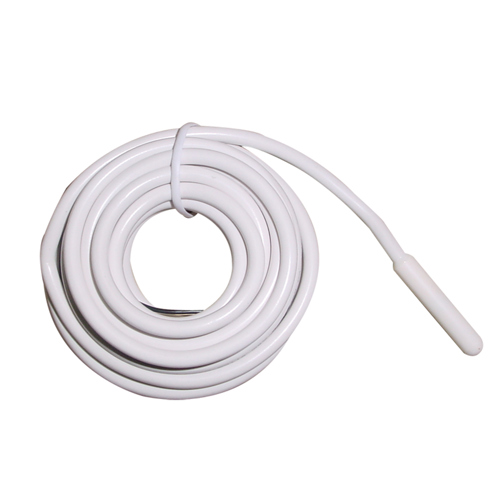

Unisenza Floor Sensor
Myson's Unisenza Floor Sensor helps with floor temperature detection
- Floor temperature detection
- 3 m long cable
- Compatibility with thermostats
- Precision and reliability
- Extended 5 year warranty
Product description
Myson's Unisenza Floor Sensor is an NTC sensor 10 kOhm for floor temperature detection, suitable for the Unisenza Digital and WiFi thermostats. The connection cable is 3m long. An extended warranty of 5 years applies to all Unisenza products.
Technical Specifications
| ETIM Class | EC004240 - Sensor (HVAC) |
|---|---|
| Scope of application | Room |
| With mounting material | No |
| Suitable for wall mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for duct mounting | Yes |
| Suitable for tube mounting | No |
| Suitable for air | Yes |
| Suitable for liquids | No |
| Suitable for gases | No |
| With housing | No |
| Cover attachment | Other |
| Sensor element inside housing | Yes |
| Sensor element outside housing | No |
| Fixed cable to sensor | Yes |
| Cable length [m] | 1.5 |
| Sensor length [mm] | 30 |
| Insert length [mm] | 30 |
| Diameter sensor element [mm] | 6 |
| Material element | Other |
| Technology | Other |
| Active temperature measurement | No |
| Passive temperature measurement | Yes |
| Average temperature measuring | No |
| Number of measuring points | 1 |
| Measurement of CO2 | No |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | No |
| Particulate matter measurement (PM) | No |
| Offset setting possible | No |
| Trend representation | No |
| Error registration possible | No |
| Sensor type | NTC, 10K |
| Tolerance [%] | 5 |
| Potentiometer with adjustment knob | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for MP (multi point) | No |
| Supporting protocol for KNX | No |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Standby push button | No |
| Wireless | No |
| With display | No |
| Type of power supply | Other |
| Type of electric connection | Other |
| With reverse polarity protection | No |
| Explosion-proof | No |
| Degree of protection (IP) | IP65 |
| Housing colour | White |
| UV resistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
