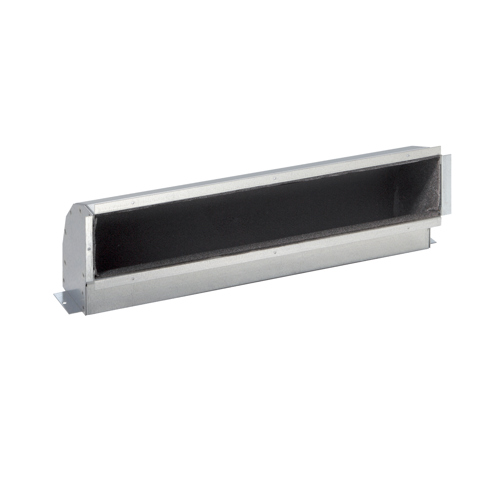

90° air outlet duct
For units recessed in false ceiling cavity with exposed outlet grille
- For ceiling-recessed iVector S2.
- Required for false ceiling installation.
- Connects unit to outlet grille.
- Maintains aesthetic integrity.
- Reliable performance.
Product description
Duct should be used with recessed versions where the unit will sit in false a ceiling cavity and the outlet grille will be exposed
Technical Specifications
| ETIM Class | EC010061 - Mechanical accessories, ventilator convector |
|---|---|
| Height [mm] | 107 - 300 |
| Width / Length [mm] | 305 - 1108 |
| Depth [mm] | 90 - 130 |
| Weight [kg] | 0.69 - 11.8 |
Items
| Item code | Item description | Weight [kg] | CO2/Kg equivalent per kg of material |
|---|---|---|---|
| VSI-11AIRADAPT | Air intake adapter - VSI 11 | 1.32 | - |
| VSI-11AIRDUCT | Variable length air flow duct - min 320mm / max 590mm - VSI 11 | 7.4 | - |
| VSI-11DUCT90 | 90o Air outlet duct - VSI 11 | 2.2 | - |
| VSI-13AIRADAPT | Air intake adapter - VSI 13 | 1.77 | - |
| VSI-13AIRDUCT | Variable length air flow duct - min 320mm / max 590mm - VSI 13 | 9.6 | - |
| VSI-13DUCT90 | 90o Air outlet duct - VSI 13 | 2.7 | - |
| VSI-15AIRADAPT | Air intake adapter - VSI 15 | 2.05 | - |
| VSI-15AIRDUCT | Variable length air flow duct - min 320mm / max 590mm - VSI 15 | 11.8 | - |
| VSI-15DUCT90 | 90o Air outlet duct - VSI 15 | 3.2 | - |
| VSI-7AIRADAPT | Air intake adapter - VSI 7 | 0.69 | - |
