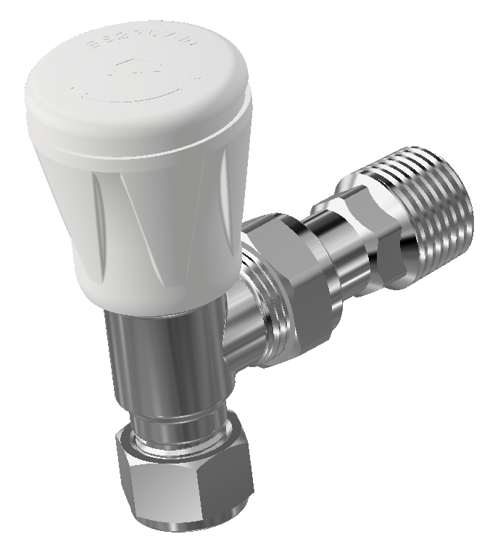

Matchmaster
A range of durable and reliable radiator valves
- Manufactured to ISO 9001:2008. Conforms to BS 2767-10
- 2 year guarantee against manufacturing defects
- Operating pressure 10 bar (compression) and 3 bar (pushfit)
- Operating temperature 120°C (compression) & 92°C (pushfit)
- Graphite gland packaging
Product description
Matchmaster radiator valves are the ideal choice for those seeking top-of-the-line specifications. Designed to provide robust performance and withstand even the most demanding of applications, their chrome finish adds a sleek and modern touch to any heating system. One of the standout features of Matchmaster radiator valves is the use of graphite gland packing, which provides an extended and trouble-free operation, reducing the need for maintenance and ensuring that your heating system operates smoothly for an extended period. Available in both straight and angled options, as well as compression and pushfit connections, Matchmaster radiator valves offer versatile and reliable performance,
Technical Specifications
| ETIM Class | EC010136 - Radiator stop valve |
|---|---|
| Housing material | Brass |
| Surface protection | Chromium-plated |
| Size of radiator connection | 1/2 inch (15) |
| Size of pipe connection | 1/2 inch (15) - 3/8 inch (10) |
| Shape | Right-angled - Straight |
| With sealing ring | Yes |
| With straight tailpiece | Yes |
| With bent tailpiece | No |
| With compression set | Yes |
| Pipe diameter compression set [mm] | 15 |
| Can be preset | No |
| Presetting | None |
| Operation | Manually operated |
| Suitable for single pipe system | No |
| Suitable for two pipe system | Yes |
| Thermostatically prepared | No |
| Reverse direction of flow | Yes |
| With dust cap | No |
| Automatic flow control | No |
| Shortened construction length | No |
| Height [mm] | 100 - 120 |
| Pressure independent | No |
| Width / Length [mm] | 85 - 130 |
| Depth [mm] | 100 - 120 |
| Weight [kg] | 0.0077 - 0.304 |
Items
| Item code | Item description | Height [mm] | Weight [kg] | CO2/Kg equivalent per kg of material |
|---|---|---|---|---|
| MASTER1/2LAC | Matchmaster 1/2" Olive Lockshield Angle Chrome | 120 | 0.18 | - |
| MASTER1/2LSC | Matchmaster 1/2" Olive Lockshield Straight Chrome | 120 | 0.201 | - |
| MASTER1/2WAC | Matchmaster 1/2" Olive Wheelhead Angle Chrome | 120 | 0.188 | - |
| MASTER1/2WSC | Matchmaster 1/2" Olive Wheelhead Straight Chrome | 120 | 0.212 | - |
| MASTER10LAC | Matchmaster 10mm Lockshield Angle Chrome | 120 | 0.1815 | - |
| MASTER10LACD | Matchmaster 10mm Lockshield Angle Chrome Drain Off | 120 | 0.2175 | - |
| MASTER10LACDPF90 | Matchmaster 10mm LS Angle Chrome Drain Off C/W Pushfit 90 Degree Elbow | 120 | 0.253 | - |
| MASTER10LACPF | Matchmaster 10mm Lockshield Angle Chrome Pushfit | 120 | 0.2135 | - |
| MASTER10LACPF90 | Matchmaster 10mm Lockshield Angle Chrome C/W Pushfit 90 Degree Elbow | 120 | 0.2215 | - |
| MASTER10LSCPF | Matchmaster 10mm Lockshield Straight Chrome Pushfit | 120 | 0.2355 | - |
