Avonmore

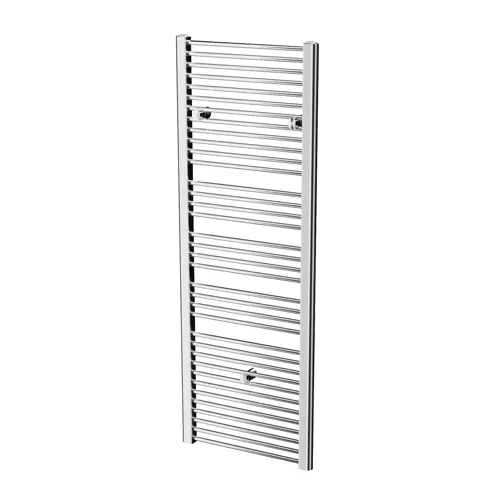

Myson Avonmore Multi-rail Towel Warmer
- Maximum flexibility
- Versatile applications
- High-quality finish
- Flexible installation
- Energy-efficient
Product description
The Myson Avonmore towel radiator combines multi-rail design and great heat outputs with practical tube spacing for convenient towel placement. With various available rail configurations, this bathroom radiator is a flexible choice for any project, whether domestic or commercial. Avonmore is a classic multi-rail design that is available in a range of sizes, finishes, and straight or curved models. This makes it an extremely popular specification product for new build. Suitable for hydronic heating systems, and optional dual fuel. A fully electic model is also available, see Electric Avonmore.
Technical Specifications
| ETIM Class | EC011023 - Tube radiator |
|---|---|
| Material | Steel |
| Material quality | Other |
| Number of tubes | 17 - 36 |
| Height [mm] | 862 - 1807 |
| Length [mm] | 400 - 600 |
| Depth [mm] | 83 - 92 |
| Depth from wall to front side [mm] | 92 - 115 - 83 - 106 - 100 - 123 |
| Shape of radiation tube | Round |
| Shape of collector | D profile |
| Installation | Vertical |
| Radiant tube | Horizontal |
| Radiator design | Straight |
| Towel radiator model | Yes |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 122 - 533 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 0 - 866 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 115 - 1556 |
| N-exponent | 1.267 - 1.3449 |
| Max. operating pressure [bar] | 0 - 8 |
| Water content [l] | 3 - 10 |
| With fan heater | No |
| Max. input power heating [W] | 250 - 500 |
| Standard colour | Yes / No |
| Colour | Anthracite - Black - White |
| RAL-number | 7016 - 9005 - 9016 |
| Degree of gloss | Matt - Glossy |
| Surface protection | Lacquered |
| Suitable for damp space | Yes / No |
| Suitable for towel holder | Yes |
| With towel holder | No / Yes |
| With mirror | No |
| Mounting method | On wall |
| With side lining | No |
| With top cladding | No |
| Swivelling | No |
| Applicable with hot tap water circuit | No |
| Number of standard connections | 2 |
| Connection 1, bottom left | Inlet/outlet flow |
| Connection 8, bottom right | Inlet/outlet flow |
| Thread size (inch) | 1/2 inch |
| With single-point connection | No |
| Thread connection | Internal thread |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With thermostat button | No |
| With consoles | Yes / No |
| Suitable for electrical element | Yes |
| With blind stops | Yes |
| With mounting material | Yes |
| Watt Per Meter [W/m] | 417 - 1014 |
| Factor K | 0 - 3204 |
| Watt Absolute [W] | 234 - 1014 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 416 - 1817 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 799 - 3460 |
| Max. Operating Temperature [°C] | 110 |
| Variant | Straight - Curved |
| Mounting Direction | Vertical |
| Number of wall brackets | 3 - 4 |
| Weight [kg] | 1 - 14.2 |
