Décor Vertical

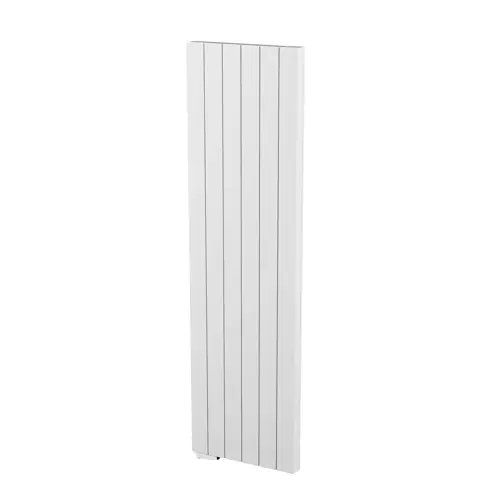

Myson Décor Vertical Designer Radiator
- Sleek and elegant
- Perfect wall fit
- High heat output
- Range of sizes
- Colour options
Product description
The Myson Decor range has played a leading role in the world of interior design over the past decade, demonstrating that radiators can appear as a feature, and compliment the decor of a room, as well as providing essential heat. Available in a range of sizes and flat tube designs, Myson Decor range offers a stunning alternative to mainstream radiators.
Technical Specifications
| ETIM Class | EC011023 - Tube radiator |
|---|---|
| Material | Steel |
| Material quality | Other |
| Number of tubes | 6 - 10 |
| Height [mm] | 1600 - 2000 |
| Length [mm] | 455 - 755 |
| Depth [mm] | 52 - 70 |
| Depth from wall to front side [mm] | 70 - 103 - 52 - 75 |
| Shape of radiation tube | Rectangular |
| Shape of collector | Triangular |
| Installation | Vertical |
| Radiant tube | Vertical |
| Radiator design | Straight |
| Towel radiator model | No |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 451 - 1250 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 0 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 226 - 1505 |
| N-exponent | 1.317 - 1.323 |
| Max. operating pressure [bar] | 0 |
| Water content [l] | 7 - 24 |
| With fan heater | No |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Surface protection | Lacquered |
| Suitable for damp space | Yes |
| With towel holder | No |
| With mirror | No |
| Mounting method | On wall |
| With side lining | No |
| With top cladding | No |
| Swivelling | No |
| Applicable with hot tap water circuit | No |
| Number of standard connections | 4 |
| Connection 2, left side low | Inlet/outlet flow |
| Connection 3, left side top | Inlet/outlet flow |
| Connection 6, right side top | Inlet/outlet flow |
| Connection 7, right side low | Inlet/outlet flow |
| Thread size (inch) | 1/2 inch |
| With single-point connection | No |
| Thread connection | Internal thread |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With consoles | Yes |
| Suitable for electrical element | No |
| With blind stops | Yes |
| With mounting material | Yes |
| Factor K | 0 |
| Watt Absolute [W] | 892 - 2456 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 1539 - 4265 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 3044 - 8380 |
| Max. Operating Temperature [°C] | 110 |
| Variant | V10 - V20 |
| Mounting Direction | Vertical |
| Number of wall brackets | 4 |
| Weight [kg] | 2.1387 - 63.3114 |
